Explosion Proof Ventilation And Extraction Fan 300mm 110V and 240V~50Hz







Explosion Proof Extraction and Ventilation:

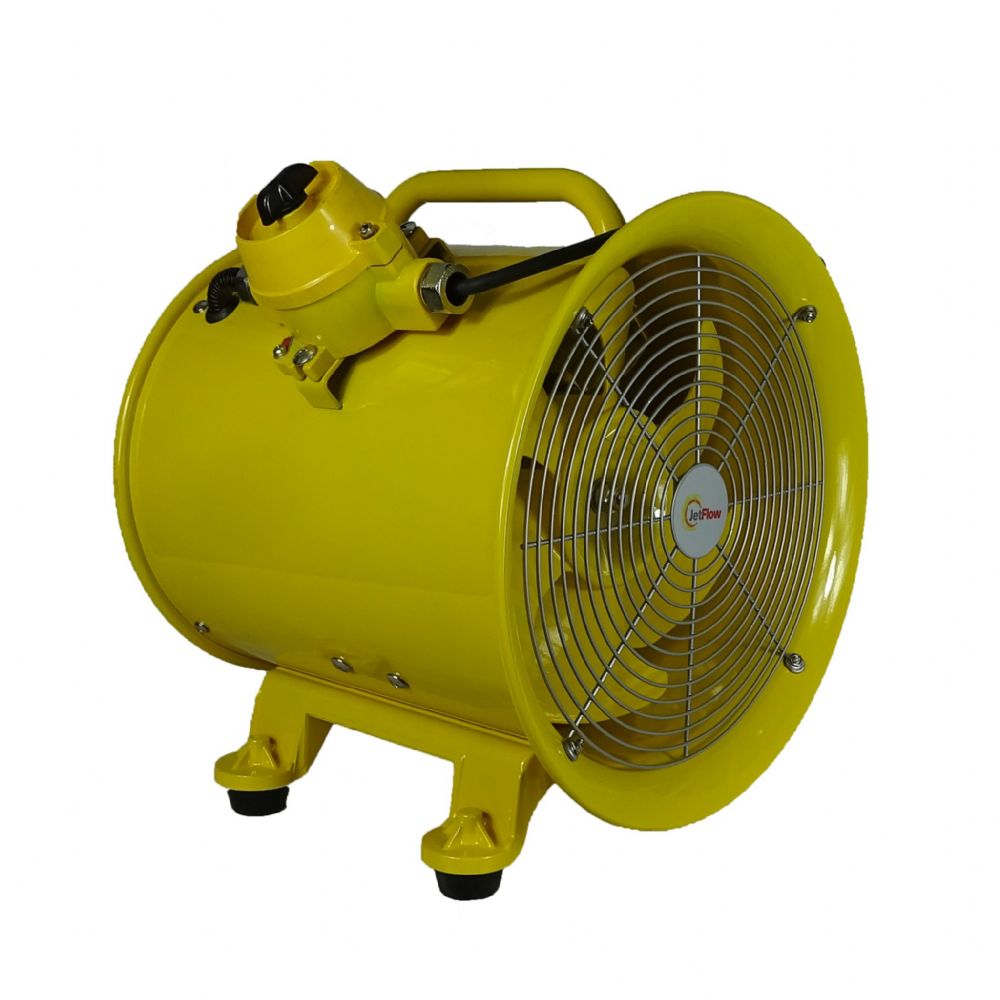

    The Olympus JetFlow OLY-CEX30 110V / 220V~50Hz 300mm explosion proof dust and fume extractor fans are designed to give the greatest possible safety, performance and reliability. They are suitable for even the most demanding industrial, construction and workshop applications where hazardous dust particles, materials or gases may cause safety issues. The Olympus JetFlow OLY-CEX30 is portable, compact, rugged, reliable and built to last.

Housed within the 1.5mm high grade steel bodies are sickle bladed fans, designed to maximize airflow and pressure. The Olympus JetFlow OLY-CEX30 explosion proof dust and fume extractor fans are driven by powerful aluminium encased fan motors that keep weight to a minimum while keeping the product safe to explosion rating II 2 G Ex d T4 Zone 2. The powerful ventilation fans can deliver up to 3600 m³/hr safely at 300pa making them ideal for ventilation, extraction of gas/dust/fumes and fresh air supply down 10 meters of tough ducting. The Olympus Jetflow fans are ideal for industries such as petrochemical, pharmaceutical, tunnel ventilation, sewage, drainage, automobile manufacturing, factories, basements, shipyards, farms, grain storage, chemical, auto repair workshops, logistics centres, hotels ventilation, hotel kitchen, tobacco, playground ventilation, shopping centres, bars, kilns, steel works, mining, plastic machinery and paper mills and other ventilation project.


Available in either 110v or 240v and with a optional 10m of flexible fire retardant ducting fitted either side. The Olympus JetFlow range are also available in standard (OLY-C) versions for the most extreme environments.



Key Product Features:


  • Diameter: 300mm
  • Supply: 110v/26a
  • Airflow: 3600m³/hr
  • Static Pressure: 294pa
  • Weight: 14kG
  • Dimensions: 44cm x 39.5cm x 39.5cm
  • explosion rating II 2 G Ex d T4 Zone 2
  • Noise 66dB (A)


PDF Data:



Models:

Olympus JetFlow FL30EX Tough Explosion Proof Dust And Fume Extractor / Ventilator Fan Ducting 300mm

Olympus JetFlow OLY-CEX30/220 Explosion Proof Dust And Fume Extractor / Ventilator Fan 300mm 240V~50Hz

Olympus JetFlow OLY-CEX30/110 Explosion Proof Dust And Fume Extractor / Ventilator Fan 300mm 110V~50Hz
