This range now obsolete

Traditionally, air conditioning indoor units have been prime examples of function winning over form – but now that tradition has been broken.

Lg Air conditioning, art cool , buy on-line at our secure server www.orionairsales.co.uk

LG Art Cools design

Ultra-slim, uncluttered and minimalist Art Cool transforms air conditioning indoor units from being simply a means to an end to become an object of desire – even when it’s not operating, people notice it. Especially as its choice of finishes – from subdued pastels and naturals to striking shades of blue and red – and variety of sizes – standard, mirror and wide – means that Art Cool lends a degree of sophistication and style to any setting; from major office developments to town centre apartments, from the more traditional to the daringly contemporary.

Art Cool’s beauty, though, is far more than skin deep. For behind its slim line profile and clean lines is one of the most efficient, effective and advanced air conditioning units – but what would you expect from the world’s top selling air conditioning manufacturer for five consecutive years. Making Art Cool the only air conditioning unit that’s as easy on the eye as it is good at its job – the coolest thing on the market.

Auto Changeover

Automatic responses to deviations in a set base temperature Both base temperature and degree of fluctuation is set by end-user An increase of up to 0.5°C initiates cooling cycle Drop of as much as 0.5°C either reduces fan speed or switches it off until the base setting is regained Allows end-user to enjoy optimum room temperature and maximum energy efficiency.

PRODUCT DATA

A12AHB/D

A18AHB/M

C12AHR/M

C09AWR

C12AWR

Capacity

Capacity Cooling (kW) (Nominal)

3.4

5.28

3.55

2.64

3.52

Capacity Heating (kW) (Nominal)

3.58

5.42

3.81

3.16

3.96

Capacity Cooling (kW) (UK)

3.09

4.52

3.24

2.6

3.5

Capacity Heating (kW) (UK)

3.28

4.74

3.33

3.1

3.9

Electrical Data

Input Cooling (kW)

1.1

1.76

1.1

0.75

1.1

Input Heating (kW)

1.2

1.8

1.12

0.88

1.41

Running Current (Amps) Cooling

4.9

7.7

4.9

3.9

5

Running Current (Amps) Heating

5.3

8.2

5.1

4.5

6.2

Starting Current (Amps) Cooling

28

58

28

3.9

5

Starting Current (Amps) Heating

28

58

28

4.5

6.2

Power Supply (V/Ph/Hz)

240/1/50

240/1/50

240/1/50

240/1/50

240/1/50

Circuit Breaker (Amps)

15

15

15

15

15

Performance

EER Cooling (W/W)

3.2

3

3.2

3.52

3.2

COP Heating (W/W)

2.98

3

3.4

3.62

2.81

Air Circulation (m3/s)

0.14

0.20

0.16

0.15

0.16

Noise Level @ 1m (dBA) (H/M/L) INDOOR

44/36/30

45/40/30

36/34/32

34/32/28

35/33/28

Noise Level @ 1m (dBA) OUTDOOR

46

53

46

48

48

Dimensions

Net Dimensions (WxHxD mm) INDOOR

570x568x137

928x522x147

1030x290x153

1030x290x153

1030x290x153

Net Dimensions (WxHxD mm) OUTDOOR

770x540x245

870x655x320

770x540x245

770x540x245

770x540x245

Net Weight

Indoor Unit (Kg)

8.5

17

9

9.5

9.5

Outdoor Unit (Kg)

35

60

34

37

38

Pipe Connections

Liquid (Inch)

1/4"

1/4"

1/4"

1/4"

1/4"

Gas (Inch)

1/2"

1/2"

1/2"

3/8"

1/2"

Drain Hose (mm) (ID)

16

16

16

16

16

Maximum Pipe Lengths (m)

15

30

15

10

10

Maximum Elevation (m)

7

15

7

7

7

Refrigerant

Charge R410A @ 7.5m (Kg)

0.88

1.29

0.88

0.77

0.82

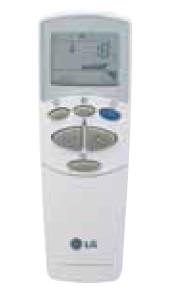

All Art Cool units come complete with an infrared remote control unit that allows the end-user to control the following functions:

  • Air circulation/Fan operation

  • Room temperature checking

  • Sleep mode operation

  • Temperature setting

  • Operation mode selection

  • Single event 24 hour timer function

Lg Air conditioning controller
