CARLYLE SEMI-HERMETIC COMPRESSORS REFRIGERATION AND AIR CONDITIONING DUTY



06D and 06E CARLYLE SEMI-HERMETIC COMPRESSORS REFRIGERATION AND AIR CONDITIONING DUTY




To use the PDF charts (listed below), first select the 06D or 06E compressor suitable for the application. Consider capacity, refrigerant, voltage, wire size, space limitations, etc. Next, use the compressor model number to enter the accessory tables and find the necessary accessories. These include Circuit Breakers, Service Valve Kits, Terminal Box Kits, Crankcase Heaters. You can also select any optional accessories needed for the installation.

06D and 06E CARLYLE SEMI-HERMETIC  COMPRESSORS 06D and 06E CARLYLE SEMI-HERMETIC  COMPRESSORS

Guide To Selecting A Carlyle 06 Compressor:

VIEW CARLYLE 06 COMPRESSOR FULL DATA SHEET HERE



Carlyle 06 Compressor Spare Parts:

We can ship Carrier / Carlyle compressor spare and parts. COMPRESSOR OIL, SUCTION CUT-OFF UNLOADING KITS, PRESSURE CAPACITY CONTROL MODIFICATION PACKAGES, SUCTION CUT-OFF UNLOADING REPAIR KIT, SUCTION CUT-OFF UNLOADING KITS AND ELECTRIC CAPACITY CONTROL MODIFICATION PACKAGES.



Carlyle 06 COMPRESSOR OIL

        RECOMMENDED FOR USE WITH ALL REFRIGERANTS

        LOW WAX CONTENT

        HIGH DIELECTRIC STRENGTH

        THERMALLY STABLE



VISCOSITY SIZE PIN

        150 1 GAL. VIR - L318

        150 5 GAL. VIR - L318

        300 1 GAL. VIR- L319

        300 5 GAL. VIR - L319

        520 1 GAL. VIR- L319

RCD is pleased to announce the addition of Totaline polyester oils to our product offering. These products are specifically designed for the use with non-CFC refrigerant R-134a. They are formulated to be useable with R-134a over a wide temperature range while maintaining excellent lubricant capability.

06D and 06E Compressor Kits:

SUCTION CUT-OFF UNLOADING KITS ELECTRIC CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06DA660089

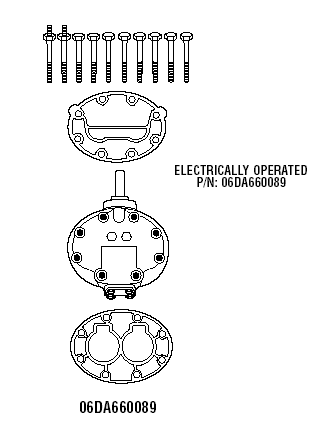

06D SUCTION CUTOFF UNLOADING KITS ELECTRIC CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06DA660089

The capacity control valve in this package is actuated by an electric solenoid. The solenoid is either energized or de-energized by the action of an external controller. The solenoid coil is not supplied with this package. This package can be used to (1) convert an 06D compressor with hot gas bypass unloading to electrically operated suction cut-off unloading, (2) add unloading or (3) add a second bank of unloading to an 06D compressor.

The kit consists of the following:

        - Cylinder Head Assembly (incl. capacity control valve)

        - Valve Plate Gasket

        - Cylinder Head Gasket

        - Cylinder Head Bolts

        - Instructions

        - Solenoid Coils for electric un-loader valve.

PART NO. VOLTAGE

1.    EF19ZE024 24V

2.    EF19ZE120 120V

3.    EF19ZE240 208-240V

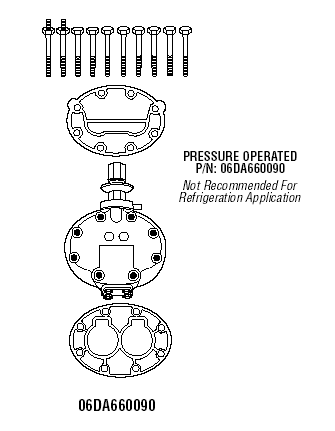

PRESSURE CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06DA660090

NOT RECOMMENDED FOR REFRIGERATION APPLICATIONS

PRESSURE CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06DA660090

The capacity control valve in this package is controlled by suction pressure and actuated by discharge pressure. This package can be used to

1.    (1) convert an 06D compressor with hot gas bypass unloading to suction cut-off unloading,

2.    (2) add unloading, or

3.    (3) add a second bank of unloading to an 06D compressor.

The kit consists of the following:

        - Cylinder Head Assembly (incl. capacity control valve)

        - Valve Plate Gasket

        - Cylinder Head Gasket

        - Cylinder Head Bolts

        - Instructions

SUCTION CUT-OFF UNLOADING REPAIR KIT PART NO.: 06DA660111

This kit contains the parts used internally for the suction cut-off unloading head. It is used for both electric and pressure operated suction cut-off unloading applications. The kit does not contain the capacity control valve. Suction cut-off unloading is the "state of the art" unloading method for the 06D/06E compressors. There are substantial energy savings and improved compressor reliability when a hot gas bypass unloading system is replaced with suction cut-off unloading.

The kit consists of the following:

        - Piston and Ring

        - Valve Body

        - Spring

        - Capacity Control Valve Gasket

        - Cover Gasket

        - Strainer

        - Instructions

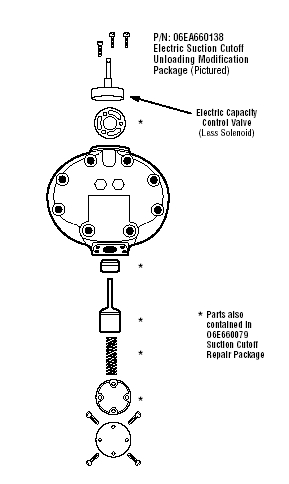

06E SUCTION CUT-OFF UNLOADING KIT ELECTRIC  CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06EA660138

The capacity control valve in this package is actuated by an electric solenoid. The solenoid is either energized or de-energized by the action of an external controller. The solenoid coil is not supplied with this package. This package can be used to

1.     (1 ) convert an 06E compressor with hot gas bypass unloading to electrically operated suction cut-off unloading,

2.     (2) add unloading or (3) add a second bank of unloading to an 06E compressor.

The kit consists of the following:

        - Cylinder Head Assembly (incl. capacity control valve)

        - Valve Plate Gasket (AC & Ref.)

        - Suction Valves

        - Cylinder Head Gasket

        - Cap screws

        - Washers

        - Instructions

        - Solenoid Coils for electric unloading valve.

PART NO. VOLTAGE

1.    EF19ZE024 24V

2.    EF19ZE120 120V

3.    EF19ZE240 208-240V

PRESSURE CAPACITY CONTROL MODIFICATION PACKAGE PART NO.: 06EA660139 (NOT RECOMMENDED FOR REFRIGERATION APPLICATIONS)

The capacity control valve in this package is controlled by suction pressure and actuated by discharge pressure. This package can be used to

1.      (1) convert an 06E compressor with hot gas bypass unloading to pressure operated suction cutoff unloading,

2.      (2) add unloading, or (3) add a second bank of unloading to an 06E compressor.

The kit consists of the following:

        - Cylinder Head Assembly (incl. capacity control valve)

        - Valve Plate Gasket (AC & Ref.)

        - Suction Valves

        - Cylinder Head Gasket

        - Cap screws

        - Washers

        - Instructions

SUCTION CUT-OFF UNLOADING REPAIR KIT PART NO.: 06EA660079

This kit contains the parts used internally for the suction cut-off unloading head. It is used for both electric and pressure operated suction cut-off unloading applications. The kit does not contain the capacity control valve.

The kit contains the following:

        - Piston and Ring - Cover Gasket

        - Valve Body - Strainer

        - Spring - Instructions

        - Capacity Control Valve Gasket

Suction cut-off unloading is the "state of the art" unloading method for the 06D/06E  compressors. There are substantial energy savings and improved compressor reliability when a hot gas bypass unloading system is replaced with suction cut-off unloading.

SUCTION CUTOFF UNLOADING REPAIR KIT PART NO.: 06EA660079

Please call or email us your Carlyle / Carrier parts request. We will then contact you with the price, availability and shipping cost.
