Daikin Ururu Sarara
Humidification FTR28E Heat-pump inverter (2.8 kW / 9000 Btu) wall mounted
split air conditioning unit.
|
Product Specification
|
Ururu
humidification evenly heats the entire room. The unit incorporates both an air conditioner and a humidifier, making ideal heating possible. The URURU humidification subsystem effectively supplies the 450ml/h of water required to fully humidify an entire large living room. Unlike a standard humidifier, this indoor unit has no water tank. Thus no need for a water supply and no time-consuming cleaning. This feature also eliminates the worrisome growth of bacteria and other micro-organisms. All the moisture
in the outdoor air available inside Humidified air feels warmer
Powerful Air Purification Increase indoor air quality with Daikin Flash Streamer technology Incoming outdoor air is purified in two stages:
|
Capacity and power input
HEAT PUMP - Inverter controlled (air cooled) |
FTXR28E |
|||
Cooling capacity | min~nom~max | kW | 1.55~2.80~3.60 | |
Heating capacity | min~nom~max | kW | 1.30~3.60~5.00 | |
Nominal input | cooling | min~nom~max | kW | 0.25~0.56~0.80 |
heating | min~nom~max | kW | 0.22~0.70~1.41 | |
EER | cooling | 5.00 | ||
COP | heating | 5.14 | ||
Energy Label | cooling | A | ||
heating | A | |||
Annual energy consumption | kWh | 280 |
Notes:
1) Energy label: scale from A
(most efficient) to G (least efficient).
2) Annual energy consumption:
based on average use at 500 running hours per year full load (=nominal
capacity).
Specifications indoor units
|
FTXR28E |
||||
Dimensions | HxWxD | mm | 305x890x209 | ||
Weight | kg | 14 | |||
Front panel color | White | ||||
Air flow rate | cooling | H/L/SL | m³/min | 12.4/6.8/6.0 | |
heating | H/L/SL | m³/min | 12.9/7.7/6.8 | ||
Sound pressure level | cooling | H/L/SL | dB(A) | 42/27/24 | |
heating | H/L/SL | dB(A) | 42/29/26 | ||
Sound power level | cooling | H | dB(A) | 58 | |
Piping connections | Liquid | mm | ø6.4 | ||
Gas | mm | ø9.5 | |||
Drain | mm | ø18.0 | |||
Refrigerant type | R-410A | ||||
Power supply | V1 | 1~, 220~240V, 50Hz | |||
Infrared remote control |
HEAT PUMP |
|

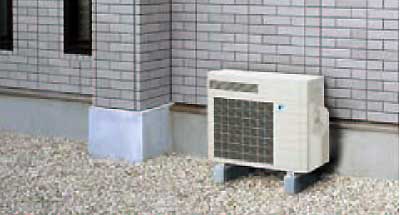

RXR28EV1B |
|
|||
Dimensions | HxWxD | mm | 693x795x285 | |||
Weight | kg | 48 | ||||
Casing colour | Ivory white | |||||
Sound pressure level | cooling | H | dB(A) | 46 | ||
heating | H | dB(A) | 46 | |||
Sound power level | cooling | H | dB(A) | 60 | ||
Compressor | Hermetically sealed swing type | |||||
Refrigerant type | R-410A | |||||
Refrigerant charge | kg/m | 1.4 | ||||
Max. piping length | m | 10 | ||||
Max. level difference | m | 8 | ||||
Operation range | cooling | H | °CDB | +21~43 | ||
heating | H | °CWB | -20~24 | |||
Refrigerant type | R-410A | |||||
Power supply | V1 | 1~, 220~240V, 50Hz |
|
:
