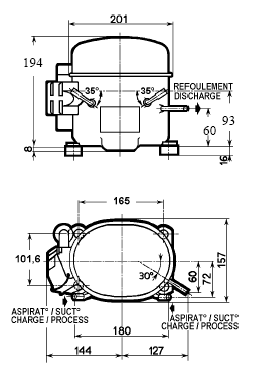

L'Unite compressor Tecumseh CAE4440Y R134A HBP




L'Unite Hermetique manufacture a complete range of hermetic compressors, for use on the following refrigerants: R134a/R49.

L'Unite Hermetique


HBP = High Back Pressure.

Compressor Motor Types

RSIR = Resistive start inductive run

CSIR = Capacitor start inductive run

CSR  = Capacitor start and run




Technical Data:




Compressor Model

Motor (HP)

Displ
C.C.

Capacity
 (Watts)

Comp.
Cooling

Expansion
Device

Motor      Type

R134a HBP



CAE4440Y

1/3

12.05

852

F

C/V

CSIR

KM - R134a Fully Hermetically expansion valve operation

Verdichter Compressor

Kälteleistung (W) bei To Cooling capacity (W) at To





Spannung Voltage

15°C 15 ° C

7,2°C 7.2 ° C

5°C 5 ° C

0°C 0 ° C

-5°C -5 ° C

-10°C -10 ° C

-15°C -15 ° C

-20°C -20 ° C

(V) (V)

CAE 4440Y CAE 4440Y

1413 1413

1026 1026

903 903

731 731

561 561

421 421

310 310

- -

220-240V 50Hz 220-240V 50Hz





P abs: 494 W P abs: 494 W
Max. Betriebsstrom: 4,0 A Max Current: 4.0 A
Anlaufstrom: 15,0 A Starting current: 15.0 A
Hubraum: 350 cm³ Displacement: 350 cc
Anschl. Conn. SL / DL : 7,9 / 6,35 mm SL / DL: 7,9 / 6,35 mm

Leistungsdaten bei Umgebungstemperatur 35°C, Sauggasüberhitzung 11 K, Verflüssigungstemperatur 54,5°C Performance at ambient temperature 35 ° C, Superheat 11K, condensing temperature 54.5 ° C





P abs: 1199 W P abs: 1199 W
Max. Betriebsstrom: 8,5 A
Max Current: 8.5A
Anlaufstrom: 29,0 A
Starting current: 29.0 A
Hubraum: 887 cm³
Displacement: 887 cc
Anschl.
Conn. SL / DL : 15,9 /7,9 mm SL / DL: 15.9 / 7.9 mm

Leistungsdaten bei Umgebungstemperatur 35°C, Sauggasüberhitzung 11 K, Verflüssigungstemperatur 54,5°C Performance at ambient temperature 35 ° C, Superheat 11K, condensing temperature 54.5 ° C

We supply refrigeration compressors and air conditioning compressors world-wide including Europe, USA, Canada, Asia, Australia, Asia, Central and South America and Africa. World and European brands of compressors. Many units on popular gases such as R404, R134a, R22, R407c and R410a.

Click Here to see our full range, We also distribute the following range of refrigerant compressors gases:

 R404, R134a, R22, R407c, R407A, R410a and many more

Refrigeration Compressor world-wide / European Brands:





Aspera Compressor

Aspera Compressor



Copeland Compressor

Copeland Compressor



Cubigel Compressor

Cubigel Compressor



Danfoss Compressor

Danfoss Compressor



L'Unite Hermetique Compressor

L'Unite Hermetique Compressor





Buy Online: L'Unite compressor Tecumseh CAE4440Y R134A HBP
