Code
|
Explanation
& Check Points
|
|
|
|
|
|
|
|
|
|
|
|
|
Ch
|

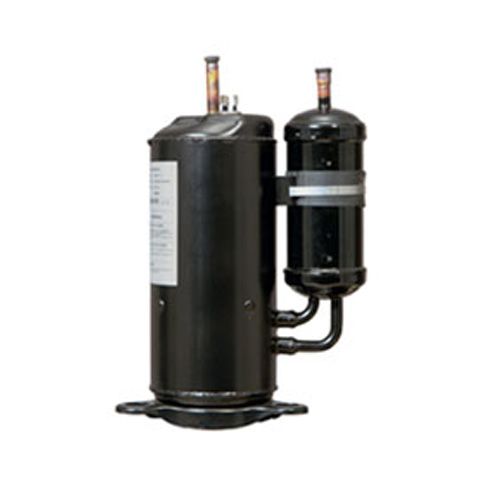

Compressor
Starting Delay - Crankcase heater initiated
|
|
|
|
"P0"
|
System
down due to high temperature discharge sensor
|
|
|
|
"P1"
|
System
down due to the high temperature of condenser
|
|
|
|
"P2"
|
Sump
Comp Down
|
|
|
|
|
|
"P3"
|
System
down due to the lower temperature switch detection
|
|
|
|
"P4"
|
System
Start down due to reverse phase of the 3 phase
|
|
|
|
"P5"
|
System
down due to frozen heat exchanger
|
|
|
|
|
"P6"
|
Error
of momentary power failure (disappears when unit is off/on)
|
|
|
"P7"
|
Compressor
down due to protection control of high pressure sensor
|
|
|
"P8"
|
Compressor
down due to protection control of low pressure sensor
|
|
|
"P9"
|
Problem
removing frost
|
|
|
|
|
|
"PA"
|
Compressor
down due to protection control of condensation ratio
|
|
|
|
|
|
|
|
|
|
"t1"
|
Error
of OUT TEMP sensor (OPEN/SHORT)
|
|
|
|
|
"t2"
|
Error
of COND TEMP sensor (Open/short)
|
|
|
|
|
"t3"
|
Error
of PWM Discharge TEMP sensor (Open/Short)
|
|
|
|
|
"t4"
|
Error
of liquid refrigerant pipe (cond out) Temp (Open/short)
|
|
|
|
"t5"
|
Error
of OIL TEMP sensor (Open/Short)
|
|
|
|
|
"t6"
|
Error
of Suction temp sensor (Open/Short)
|
|
|
|
|
"t7"
|
Error
of high pressure sensor (Open/Short)
|
|
|
|
|
"t8"
|
Error
of low pressure sensor (Open/Short)
|
|
|
|
|
"t9"
|
Error
of fixed compressor discharge sensor (Open/Short)
|
|
|
|
|
|
|
|
|
|
|
"E1"
|
System
down due to the communication error after completion of tracking
|
|
"E2"
|
Mismatching
of the numbers of set indoor units to actual indoor units
|
|
|
"E3"
|
Indoor
Unit float switch error
|
|
|
|
|
"E5"
|
Setting
error of option switch in indoor unit
|
|
|
|
|
|
|
|
|
|
|
|
"Ax"
|
Indoor
Unit EVAP IN sensor breakaway
|
|
|
|
|
"bx"
|
Indoor
Unit EVAP Out Sensor breakaway
|
|
|
|
|
"Cx"
|

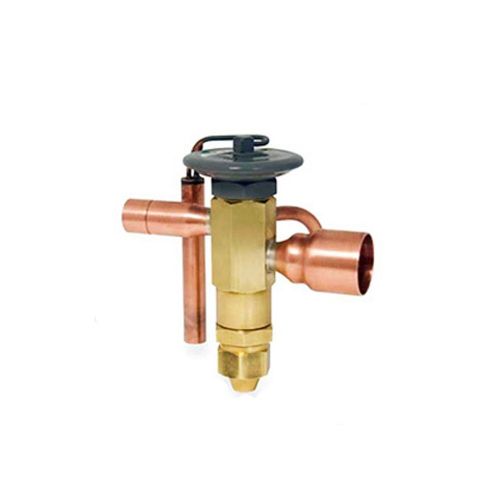

Electronic
expansion valve open error
|
|
|
|
|
"dx"
|
Electronic
expansion valve close error
|
|
|
|
|
"fx"
|
Simultaneous
breakaway of indoor unit EVAP IN and EVAP OUT sensor
|
|
|
|
|
|
|
|
|
|
"G2"
|
Total
Leakage of Refrigerant in outdoor unit/Loading Failure
|
|
|
|
"G3"
|
Breakaway
of COND MID sensor in outdoor unit
|
|
|
|
|
"G6"
|
Breakaway
of OIL temperature sensor (Detected once or more times)
|
|
|
"G7"
|
Breakaway
of suction sensor
|
|
|
|
|
"GC"
|
Breakaway
of load compressor discharge sensor
|
|
|
|
|
|
|
|
|
|
|
|
"9x"
|
OPEN/SHORT
error of room sensor in indoor unit
|
|
|
|
|
"rx"
|
OPEN/SHORT
of EVAP IN sensor in indoor unit
|
|
|
|
|
"yx"
|
OPEN/SHORT
of EVAP OUT sensor in indoor unit
|
|
|
|
|
"ux"
|
Error
of fan setting
|
|
|
|
|
|
|
|
|
|
|
|
|
"tU"
|
Outdoor
temperature being below -5 Deg. C when cooling mode
|
|
|
"to"
|
Outdoor
temperature being over 30 Deg. C when in heating mode
|
|
|
|
|
|
|
|
|
|
E101
|
Communication
Error between the indoor unit and the Panel
|
|
|
|
E121
|
Indoor
unit room temp. sensor open/short Error
|
|
|
|
|
E122
|
Indoor
Unit EVAP IN sensor open/short error
|
|
|
|
|
E123
|
Indoor
Unit EVAP OUT sensor open/short error
|
|
|
|
|
E128
|
Indoor
Unit EVAP In sensor breakaway
|
|
|
|
|
E129
|
Indoor
Unit EVAP Out sensor breakaway
|
|
|
|
|
E130
|
Simultaneous
breakaway of indoor unit EVAP IN/OUT Sensor
|
|
|
|
E131
|
Auxiliary
(electric) heater sensor 1 error
|
|
|
|
|
E132
|
Auxiliary
(electric) heater sensor 2 error
|
|
|
|
|
E133
|
Auxiliary
(electric) heater sensor 3 error
|
|
|
|
|
E134
|
Shutter
sensor error
|
|
|
|
|
|
E135
|
Perfect
fan sensor Error
|
|
|
|
|
|
E140
|
MCU
temp. sensor open/short
|
|
|
|
|
E151
|
Indoor
unit EEV open failure
|
|
|
|
|
|
E152
|
Indoor
unit EEV close failure
|
|
|
|
|
|
E153
|
Indoor
unit float S/W detection
|
|
|
|
|
E154
|
Indoor
fan error
|
|
|
|
|
|
E161
|
Mixed
Operation error (operate heat & cool mode at same time)
|
|
|
E162
|
EPROM
Error
|
|
|
|
|
|
E163
|
Option
setting error
|
|
|
|
|
|
E165
|
Electric
heater discharge temperature protect error
|
|
|
|
|
E166
|
No
fan error related to the electric heater
|
|
|
|
|
E167
|
S/W
setup error in peripheral control device using option
|
|
|
|
E180
|
The
1st MCU SOL V/V cooling heating opening at the same time
|
|
|
|
E181
|
The
2nd MCU SOL V/V cooling heating opening at the same time
|
|
|
E182
|
The
2nd MCU SOL V/V error
|
|
|
|
|
|
E190
|
There
is no change of EVAP in temperature during the piping check
|
|
|
E191
|
There
is no change of EVAP OUT temperature during the piping check
|
|
|
E192
|
EVAP
IN temperature error during the piping check
|
|
|
|
|
E193
|
EVAP
OUT temperature error during the piping check
|
|
|
|
E201
|
Installed
indoor unit number setting error
|
|
|
|
|
E202
|
Communication
Error between indoor and outdoor unit
|
|
|
|
E203
|
Outdoor
PCB micom communication error between main and sub
|
|
|
E210
|
Communication
error between the outdoor unit and MCU
|
|
|
|
E211
|
Indoor
unit connected with confluence kit without continuity
|
|
|
|
E212
|
Confluence
kit and setting address error
|
|
|
|
|
|
E213
|
MCU
Address do not match with the indoor unit address
|
|
|
|
|
E214
|
Installed
MCU quantity set-up error in the outdoor PCB
|
|
|
|
|
E215
|
Indoor
unit address in MCU error
|
|
|
|
|
|
E216
|
DIP
switch for indoor unit setting in MCU set ON error
|
|
|
|
E217
|
Dip
switch for indoor unit setting in MC set OFF error
|
|
|
|
E221
|
OUT-TEMP
sensor OPEN/SHORT sensor error
|
|
|
|
|
E226
|
Out-Temp
sensor breakaway
|
|
|
|
|
|
|
E231
|
COND-OUT
MAIN TEMP sensor error OPEN/SHORT
|
|
|
|
|
E236
|
COND-OUT
MAIN TEMP sensor error OPEN/SHORT
|
|
|
|
|
E241
|
COND-MID
sensor breakaway of outdoor unit
|
|
|
|
|
E246
|
COND-OUT
1 breakaway
|
|
|
|
|
|
|
E251
|
PWM
DISCHARGE TEMP sensor error OPEN/SHORT
|
|
|
|
|
E256
|
Fixed
capacity compressor 1 DCHRG sensor error OPEN/SHORT
|
|
|
E257
|
Fixed
capacity compressor 2 DCHRG sensor error OPEN/SHORT
|
|
|
E258
|
Fixed
capacity compressor 3 DCHRG sensor error OPEN/SHORT
|
|
|
E261
|
Digital
discharge sensor breakaway
|
|
|
|
|
|
E262
|
Fixed
1 discharge sensor breakaway
|
|
|
|
|
|
E263
|
Fixed
2 discharge sensor breakaway
|
|
|
|
|
|
E264
|
Fixed
3 discharge sensor breakaway
|
|
|
|
|
|
E265
|
Sump-main
breakaway error
|
|
|
|
|
|
|
E266
|
Sump
Sub 1 breakaway error
|
|
|
|
|
|
|
E267
|
Sump
Sub 2 breakaway error
|
|
|
|
|
|
|
E268
|
Sump
Sub 3 breakaway error
|
|
|
|
|
|
|
E269
|
Suction
breakaway error
|
|
|
|
|
|
|
E271
|
SUMP
TEMP DIGITAL sensor error OPEN/SHORT
|
|
|
|
|
E276
|
SUMP
TEMP FIXED 1 sensor error OPEN/SHORT
|
|
|
|
|
E277
|
SUMP
TEMP FIXED 2 sensor error OPEN/SHORT
|
|
|
|
|
E278
|
SUMP
TEMP FIXED 3 sensor error OPEN/SHORT
|
|
|
|
|
E291
|
High
pressure sensor error OPEN/SHORT
|
|
|
|
|
|
E296
|
Low
pressure sensor error OPEN/SHORT
|
|
|
|
|
|
E301
|
High
Pressure Sensor Breakaway
|
|
|
|
|
|
E306
|
Low
Pressure Sensor Breakaway
|
|
|
|
|
|
E308
|
Suction
Temp. Sensor ERROR (OPEN/SHORT)
|
|
|
|
|
E312
|
Main
Cooling sol. v/v open error
|
|
|
|
|
|
E313
|
4-Way
v/v operation error
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E401
|
Outdoor
unit freezing detection 1
|
|
|
|
|
|
E402
|
Outdoor
unit freezing detection 2
|
|
|
|
|
|
E403
|
Outdoor
unit freezing detection 3 - freezing COMP DOWN
|
|
|
|
E404
|
Outdoor
unit overload 1 protection control error
|
|
|
|
|
E405
|
Outdoor
unit overload 2 protection control error
|
|
|
|
|
E406
|
Outdoor
unit overload 3 protection control error
|
|
|
|
|
E407
|
Compressor
down by high pressire sensor protection control 1
|
|
|
E408
|
Compressor
down by high pressire sensor protection control 2
|
|
|
E409
|
Compressor
down by high pressire sensor protection control 3
|
|
|
E410
|
Compressor
down by low pressure sensor protection control 1
|
|
|
E411
|
Compressor
down by low pressure sensor protection control 2
|
|
|
E412
|
Compressor
down by low pressure sensor protection control 3
|
|
|
E413
|
Outdoor
unit SUMP DOWN 1 protection control
|
|
|
|
|
E414
|
Outdoor
unit SUMP DOWN 2 protection control
|
|
|
|
|
E415
|
Outdoor
unit SUMP DOWN 3 protection control
|
|
|
|
|
E416
|
Outdoor
unit discharge temperature 1 protection control
|
|
|
|
E417
|
Outdoor
unit discharge temperature 2 protection control
|
|
|
|
E418
|
Outdoor
unit discharge temperature 3 protection control
|
|
|
|
E419
|
Outdoor
unit EEV open 1 self diagnosis error
|
|
|
|
|
E420
|
Outdoor
unit EEV open 2 self diagnosis error
|
|
|
|
|
E421
|
Outdoor
unit EEV open 3 self diagnosis error
|
|
|
|
|
E422
|
Outdoor
unit EEV close 1 self diagnosis error
|
|
|
|
|
E423
|
Outdoor
unit EEV close 2 self diagnosis error
|
|
|
|
|
E424
|
Outdoor
unit EEV close 3 self diagnosis error
|
|
|
|
|
E425
|
Outdoor
unit reverse phase detection 1 error
|
|
|
|
|
E426
|
Outdoor
unit reverse phase detection 2 error
|
|
|
|
|
E427
|
Outdoor
unit reverse phase detection 3 error
|
|
|
|
|
E428
|
Outdoor
unit compression rate 1 error
|
|
|
|
|
|
E429
|
Outdoor
unit compression rate 2 error
|
|
|
|
|
|
E430
|
Outdoor
unit compression rate 3 error
|
|
|
|
|
|
E440
|
Forbid
heating mode operation when outdoor temperature over 30 Deg. C
|
|
E441
|
Forbid
cooling mode operation when outdoor temperature below -5 Deg. C
|
|
E442
|
Refrigerant
charding error in the heating mode
|
|
|
|
|
E452
|
Instant
Power off (dissapear when compresson run)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E551
|
Defrosting
operation
|
|
|
|
|
|
|
E552
|
Low
Discharge Pressure
|
|
|
|
|
|
|
E553
|
Eqability
Operation
|
|
|
|
|
|
|
|
E554
|
Loading
Failure Full leakage of refrigerant of outdoor unit
|
|
|
|
|
|
|
|
|
|
|
|
|
|
E601
|
Communication
error between wired remote controller and indoor unit
|
|
|
E602
|
Communication
error between master and slave wired remote controller
|
|
E603
|
Communication
error between 7 day scheduler and wired remote controller
|
|
|
|
|
|
|
|
|
|
|
|
E701
|
Float
S/W detection error
|
|
|
|
|
|
|
E702
|
Indoor
unit EEV closing error
|
|
|
|
|
|
|
E703
|
Indoor
unit EEV opening error
|
|
|
|
|
|
|
E704
|
MCU
Sol v/v failure
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
