Stratos Wilo PICO Glandless circulation pump with threaded connection, blocking-current proof EC motor and integrated electronic performance control





Stratos Wilo PICO Glandless circulation pump with threaded connection, blocking-current proof EC motor and integrated electronic performance control





Design

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Type key

Example:

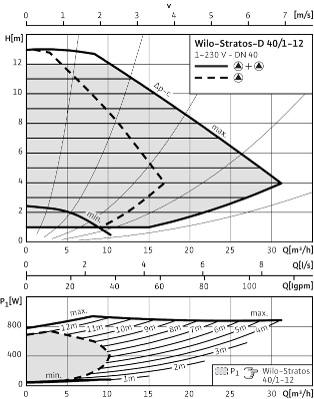

Wilo-Stratos 40/1-12

Stratos

High-efficiency pump (screw-end or flange-end pump), electronically controlled

30/

Nominal connection diameter

1-12

Nominal delivery head range [m]

Special features/product benefits

Energy efficiency class A

Highest degrees of efficiency due to ECM technology

Up to 80% electricity savings compared to uncontrolled circulation pumps

Front operation and access to the terminal space, variable installation positions, display independent of position

Simple installation due to combination flanges PN 6/PN 10 (with DN 32 to DN 65)

Can be used in cooling/air-conditioning systems without ambient temperature limits

Pump housing with cataphoretic coating for the prevention of corrosion by condensation formation

System expansion by means of retrofittable interface modules for communication: Modbus, BACnet, CAN, LON, PLR etc.

Remote control via infrared interface (IR-Module/IR-Monitor)

Technical data

Permissible temperature range --10C to +110C

Mains connection 1~230 V, 3~230 V, 50/60 Hz

Protection class IP 44

Screwed connection or flange connection (depending on type) Rp 1 to DN 100

Max. operating pressure, standard version: 6/10 bar or 6 bar (special version: 10 bar or 16 bar)

Equipment/function

Operating modes

Manual control mode (n=constant)

Δp-c for constant differential pressure

Δp-v for variable differential pressure

Δp-T for temperature-controlled differential pressure (programmable via IR-Module, IR-Monitor, Modbus, BACnet, LON or CAN)

Manual functions

Operating mode setting

Differential-pressure setpoint setting

Setting automatic setback operation

Pump ON/OFF setting

Speed setting (manual control mode)

Automatic functions

Stageless power adjustment depending on the operating mode

Automatic setback operation

Deblocking function

Soft start

Full motor protection with integrated trip electronics

External control functions

"Overriding Off" control input (possible with Stratos IF-Modules)

"Overriding Min" control input (possible with Stratos IF-Modules)

"Analogue In 0 - 10 V" control input (remote speed adjustment) (possible with Stratos IF-Modules)

"Analogue In 0 - 10 V" control input (remote setpoint adjustment) (possible with Stratos IF-Modules)

Signal and display functions

Collective fault signal (potential-free NC contact)

Individual run signal (potential-free NO contact) (possible with Stratos IF-Modules)

Fault signal light

LC display for indication of pump data and fault codes

Data exchange

Infrared interface for wireless data exchange with IR-Module/IR-Monitor

Serial digital interface Modbus RTU for connection to building automation BA via BUS system RS485 (possible with IF-Modules Stratos).

Serial digital interface BACnet MS/TP Slave for connection to building automation BA via BUS system RS485 (possible with IF-Modules Stratos).

Serial digital interface CAN for connection to building automation BA via BUS system CAN (possible with IF-Modules Stratos).

Serial digital LON interface for connection to a LONWorks network (possible with Stratos IF-Modules)

Serial digital PLR interface for connection to BA via Wilo interface converter or company-specific coupling modules (possible with Stratos IF-Modules)

Dual pump management (double pump or 2 x single pump)

Main/standby mode (automatic fault-actuated switchover/time-dependent pump cycling): Various combinations with Stratos IF-Modules (accessories) possible

Parallel operation (efficiency-optimised peak load activation and deactivation): Various combinations with Stratos IF-Modules (accessories) possible

Equipment

Wrench attachment point at pump body (for threaded pipe union pumps with P2< 100 W)

In flange pumps: Flange versions

Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16

Standard version for pumps DN 80 / DN 100: Flange PN 6 (configured for PN 16 acc. to EN 1092-2) for counter flange PN 6

Special version for pumps DN 32 to DN 100: Flange PN 16 (acc. to EN 1092-2) for counter flange PN 16

Plug-in position for optional extension with Wilo-IF-Modules

Standard thermal insulation for heating applications

Materials

Pump housing: Grey cast iron with cataphoretic coating

Thermal insulation: Polypropylene

Shaft: stainless steel

Bearing: Carbon, metal impregnated

Impeller: Plastic

Scope of delivery

Pump

Including thermal insulation

Including seals for threaded connection

Incl. washers for flange screws (for nominal connection diameters DN 32 - DN 65)

Including installation and operating instructions

Options

Special versions for operating pressure PN 16 (at additional charge)

Accessories

Screwed connection for threaded connection

Adapter fittings

Pump cold water insulation Wilo-ClimaForm

IR-Module

IR-Monitor

Stratos IF-Modules: Modbus, BACnet, CAN, LON, PLR, DP, Ext. Off, Ext. Min., SBM, Ext. Off/SBM

Analogue interface converter AnaCon

Digital interface converters DigiCon/DigiCon-A and DigiCon-Modbus/DigiCon-A



Energy efficiency class

EEI Class

Approved fluids (other fluids on request)

Heating water (in accordance with VDI 2035)

Water-glycol mixtures (max. 1:1; above 20% admixture, the pumping data must be checked)

Permitted field of application

Temperature range for applications in HVAC systems at max. ambient temperature of +40 C

-10 up to +110  C

Maximum permissible operating pressure

Pmax

6/10  bar

Pipe connections

Flange

Combination flange PN6/10 (PN 16 flange according to EN 1092-2)

Nominal flange diameter

DN 40

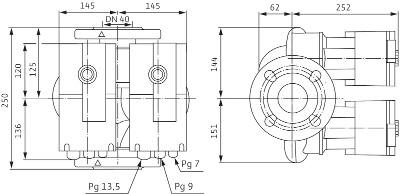

Overall length

l0

250  mm

Motor/electronics

Electromagnetic compatibility

EN 61800-3

Emitted interference

EN 61000-6-3

Interference resistance

EN 61000-6-2

Speed control

Frequency converter

Protection class

IP 44

Insulation class

Mains connection

1~230 V, 50/60 Hz

Nominal motor power

P2

350  W

Speed

n

1400 - 4600  rpm

Power consumption

P1

25 - 470  W

Current consumption

I

0.20 - 2.05  A

Motor protection

integrated

Threaded cable connection

PG

1x7/1x9/1x13.5

Materials

Pump housing

Grey cast iron (EN-GJL-250)

Impeller

Plastic (PPS - 40% GF)

Pump shaft

Stainless steel (X46Cr13)

Bearing

Carbon, metal impregnated

Minimum suction head at suction port for avoiding cavitation at water pumping temperature

Minimum suction head at 50 / 95 / 110 C

5 / 12 / 18  m

Information for order placements

Make

Wilo

Type

Stratos-D 40/1-12

Art no.

2095514

Weight approx.

m

25  kg
