07/09/2017 Case study of a Mitsubishi Heavy Industries ducted office air conditioning heat pump installation at Wheeler Electrical, Maulden, Bedfordshire, UK




Installation of 3 Mitsubishi Heavy Industries air conditioning heat-pump ducted unit serving 7 individual office areas





Orion air conditioning and refrigeration ltd is pleased to complete the installation of a complete heating and cooling system at Wheeler electrical UK a leading electrical installation company. Wheeler electrical were looking for a efficient heating and cooling system for their new head office in Maulden Bedfordshire and were familiar with the Mitsubishi Heavy Industries Air Conditioning brand which benefits from low running costs and low initial price when compare to gas or direct electric. The Mitsubishi Heavy Industries air conditioning systems offer all that was required for a office environment while at the same time cleaning the air for the user, plus the benefit of easy installation for the installer.

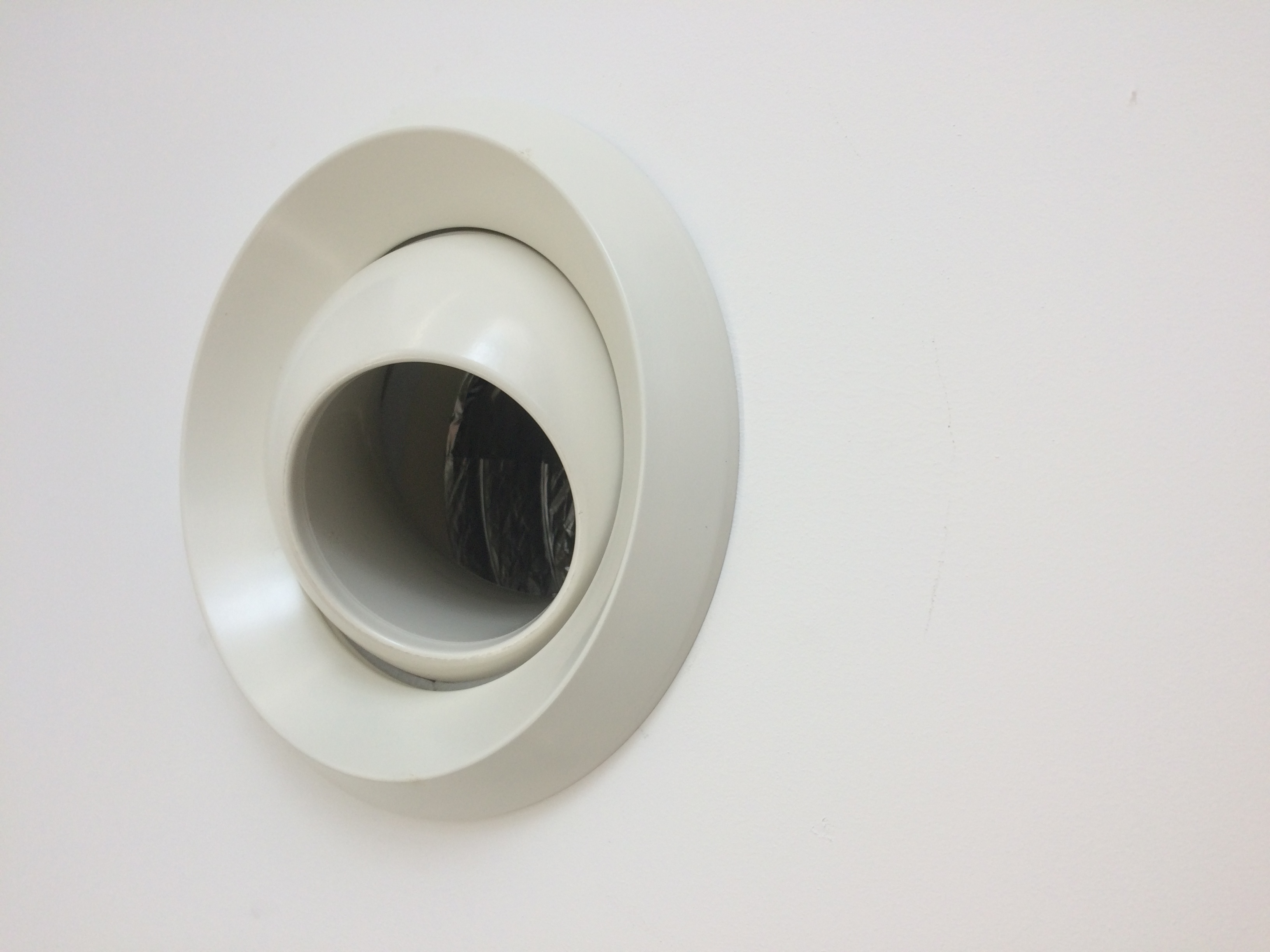

The new office consisted of 7 individual offices with 1 large open plan area with a huge heat gain from a front south facing window. Three of the Mitsubishi Heavy Industries air conditioning ducted systems were installed which offers 4 duct outlets on each indoor unit giving the user the option of air conditioning 4 separate areas off 1 air conditioning unit. We configured one of the indoor units so that each of the 4 duct outlets served a range 4 of individual offices, 1 unit which served 2 large offices offering heating and cooling and a larger Mitsubishi ducted unit which served the large open plan area. All areas had 1 return air grill which was discreetly tucked away in a corner of the room and the air conditioning controller was centralised for optimum temperature control. The open office air conditioning outlets were round-flow style offering a directional powerful flow.



Office Air Conditioning Project Images:











Office Air Conditioning Project Video:



https://drive.google.com/open?id=0B4UVnt4WTnAOOWxWY3hBNHJNUE0



About The Mitsubishi Heavy Industries Ducted Air Conditioning Heat-pump:

Mitsubishi Heavy Industries ducted heat pumps are for commercial and residential applications. Ideal for concealed cooling and heating, multiple area applications or irregular shaped rooms. FDUM Ducted units are of robust construction, and are fitted with large diameter fans for optimum air volume, whilst maintaining low sound levels. Condensate Pump included. Return plenums with filters available as a option for easy installation. Plenum outlets and inlets 200mm.




Superior Controls Specification:



There has never been a multi function controller with the advanced sophistication of the new Mitsubishi ECO R-CE1. It combines all the basic user requirements - temperature setting, fan speed selection, mode, and timer settings, with a comprehensive range of service data functions, inverter compressor speed indication, fault diagnosis, and operational history. The controller is also easy to setup and offers a 24 hour 7 day timer as standard.



Providing enough cooling and heating for each area they serve while at the same time being up to 3.7 times more efficient than direct electric heating due to its high COP rating. The Mitsubishi Heavy Industries air conditioning ducted units have a high average COP (3.5 initial input) which means that every 1000w of electrical energy going in produces 3500 watts of heat. For more information on heat-pump inverters look here.





The Mitsubishi Heavy industries Air Conditioning Ducted range comes in the following capacities:





Mitsubishi Heavy Industries Air Conditioning FDUM50VF Ducted (5 kW / 17000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDUM60VF Ducted (5.6 kW / 18000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDUM71VF1 Ducted (7.1 kW / 24000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDUM100VF1 Ducted (10 kW / 33000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDUM125VF1 Ducted (12.5 kW / 42000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDUM140VF1 Ducted (14 kW / 46000 Btu) Heat Pump Inverter 240V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDU200VF Ducted (20 kW / 66000 Btu) Heat Pump Inverter 415V~50hZ

Mitsubishi Heavy Industries Air Conditioning FDU250VF Ducted (25 kW / 66000 Btu) Heat Pump Inverter 415V~50hZ
