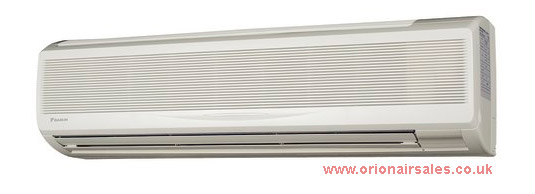

Daikin air conditioning FAQ100B
wall mounted Inverter Heat Pump
|
Daikin air
conditioners lead the industry with their energy savings
and wide model range. This series offers you a flat
panel design with high performances and great energy
efficiency. These indoor units are extremely quiet in
operation, the outdoor unit silent operation function
brings you comfort by automatically lowering the
operation sound of the outdoor unit with 3dB(A). If
night set mode is automatically selected by pressing the
‘off’ timer button. This function prevents any
sudden change in room temperature by gently
raising/lowering the temperature before the air
conditioner stops, so you can sleep more comfortably.
|
Product Key Feature's
- Energy efficient units: up to class A energy labels
- Can be installed in both new and existing buildings
- Vertical auto swing moves the discharge flaps up and
down for efficient air and temperature distribution
throughout the room
- 5 different discharge angles can be programmed via the
remote control
- Both horizontal flaps and front panel can easily be
removed and washed
- Maintenance operations can be performed from the front
of the unit
- The Sky Air® inverter is developed for use in light
commercial applications, provides a more comfortable
environment and offers great savings in energy consumption
to shop, restaurant and office owners
- The use of inverter type outdoor units results in an air
conditioning system with a high energy efficiency and very
low sound level
- An inverter driven compressor allows the capacity to be
adjusted precisely to match variations in room and outside
temperatures
- During start up, the room can be cooled down or heated
very quickly; once the temperature in the room has reached
its set point, the low power operation starts to save
energy.
- Daikin outdoor units are neat, sturdy and can easily be
mounted on a roof or terrace or simply placed against an
outside wall
- Outdoor units are fitted with either a swing or scroll
compressor, renowned for low noise and high energy
efficiency
- A special acryl precoated fin for anti-corrosion
treatment on the heat exchanger ensures greater resistance
against severe weather conditions
- Outdoor units for pair, twin, triple, double twin
application
Product
Technical Data
Product |
FAQ100BVV1B / RZQ100B9W1B |
|
Cooling
capacity |
Nom. |
kW |
10.00
(3) |
Heating
capacity |
Nom. |
kW |
11.20
(4) |
Power input |
Cooling |
Nom. |
kW |
2.780 |
|
Heating |
Nom. |
kW |
3.390 |
SEER |
3.42 |
EER |
3.60 |
COP |
3.30 |
Energy label |
Cooling |
A |
|
Heating |
C |
Annual
energy consumption |
kWh |
1,390 |
Piping
connections |
Liquid |
OD |
mm |
9.52 |
|
Gas |
OD |
mm |
15.9 |
|
Drain |
OD |
mm |
26 |
Notes |
Energy
label: scale from A (most efficient) to G (less
efficient) |
|
Annual
energy consumption: based on average use of 500 running
hours per year at full load (nominal conditions) |
|
Cooling:
indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB;
equivalent piping length: 7.5m; level difference: 0m |
|
Heating:
indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB;
equivalent refrigerant piping: 7.5m; level difference:
0m |
Productname |
FAQ100BVV1B |
|
Casing |
Colour |
White |
|
Material |
Resin |
Dimensions |
Unit |
Height |
mm |
360 |
|
|
Width |
mm |
1,570 |
|
|
Depth |
mm |
200 |
Weight |
Unit |
kg |
26.0 |
Fan |
Air flow rate |
Cooling |
High |
m³/min |
23.0 |
|
|
|
Low |
m³/min |
19.0 |
|
|
Heating |
High |
m³/min |
23.0 |
|
|
|
Low |
m³/min |
19.0 |
Sound power level |
Cooling |
High |
dBA |
61.0 |
|
|
Low |
dBA |
57.0 |
|
Heating |
High |
dBA |
61.0 |
|
|
Low |
dBA |
57.0 |
Sound pressure level |
Cooling |
High |
dBA |
45.0 |
|
|
Low |
dBA |
41.0 |
|
Heating |
High |
dBA |
45.0 |
|
|
Low |
dBA |
41.0 |
Piping connections |
Liquid |
OD |
mm |
9.52 |
|
Gas |
OD |
mm |
15.9 |
|
Drain |
VP20 (I.D.
20/O.D. 26) |
Standard Accessories |
Item |
Installation
and operation manual |
|
Quantity |
1 |
|
Item |
Paper
pattern for installation |
|
Item |
Insulation
tape |
|
Item |
Insulation
for fitting |
|
Item |
Installation
panel |
|
Item |
Screws |
Power supply |
Phase |
1~ |
|
Frequency |
Hz |
50 |
|
Voltage |
V |
220-240 |
Notes |
The sound
pressure level is measured via a microphone at 1m
distance of the unit. |
|
Sound
pressure level is a relative value, depending on the
distance and acoustic environment. For more details,
please refer to the sound level drawings. |
|
The sound
power level is an absolute value indicating the power
which a sound source generates. |
|
|
|
|
