With more than 30 years of experience,
exporting to more than 120 countries around the world,
Panasonic is unquestionably one of the leaders in the air
conditioning sector. The company is also a world leader in
innovation as it has filed more than 95,025 patents to improve
its customers’ lives. Moreover, Panasonic is determined to
remain at the forefront of its market – thanks to more than
500 researchers working in European laboratories to design
increasingly innovative products. In all, the company has
produced more than 100 million compressors and its products
are manufactured in 294 plants which are located all over the
world. You can be assured of the extremely high quality of
Panasonic’s air conditioners. This wish to excel has made
Panasonic the international leader in heating and air
conditioning solutions. The company’s industrial capacity
and firm commitment to the environment has enabled it to open
new avenues of research and to develop innovative technologies
which enhance its customers’ way of life. Panasonic offers a
range of turnkey heating and air conditioning solutions for
homes, medium-sized buildings such as offices and restaurants,
and large-scale buildings. These offer maximum effectiveness,
comply with the strictest environmental standards and meet the
most avant-garde construction requirements of our time. At
Panasonic we know what a great responsibility it is to install
heating and cooling systems. Because offering you the best
solutions in heating and cooling matters.
EVERYTHING MATTERS
PANASONIC TECHNOLOGY FOR COMFORT
Extremely quiet. We have succeeded in making
one of the most silent air conditioners on the market. The
indoor unit runs silently with a slow fan speed. When you
press the Quiet Mode button on the remote control, the
operating sound level reduces even further, down to 20 dB. At
20 dB technology our devices are as quiet as a library! We
produce discreet air conditioners which do not disturb you,
even when the room is at its quietest.

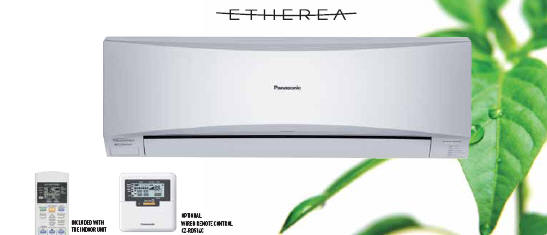

Technical Specification:
|
Indoor |
CS-XE7MKEW |
CS-XE9MKEW |
CS-XE12MKEW |
CS-XE15MKEW |
|
Outdoor |
CU-E7MKE |
CU-E9MKE |
CU-E12MKE |
CU-E15MKE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,05 (0,75-2,40) |
2,50 (0,85-3,00) |
3,50 (0,85-4,00) |
4,20 (0,85-5,00) |
|
Nominal (Min - Max) |
kCal/h |
1.760 (650-2.060) |
2.150 (730-2.580) |
3.010 (730-3,440) |
3.610 (730-4.300) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,36 (3,13-4,14) |
A |
4,67 (3,47-4,11) |
A |
4,07 (3,40-3,54) |
A |
3,33 (3,27-3,18) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,47 (0,24-0,58) |
|
0,535 (0,245-0,730) |
0,860 (0,250-1,130) |
1,26 (0,260-1,570) |
|
Heating capacity |
Nominal (Min - Max) |
kW |
2,80 (0,75-4,00) |
|
3,40 (0,85-5,00) |
4,00 (0,85-6,00) |
5,30 (0,80-6,80) |
|
Nominal (Min - Max) |
kCal/h |
2.410 (650-3.440) |
|
2.920 (730-4.300) |
3.440 (730-5.160) |
4.560 (730-5.850) |
|
Heating capacity at -7°C |
Nominal |
kW |
2,35 |
|
2,88 |
3,46 |
3,94 |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,41 (3,26-3,92) |
A |
4,63 (3,54-3,85) |
A |
4,21 (3,47-3,51) |
A |
3,68 (3,33-3,51) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,635 (0,23-1,02) |
|
0,735 (0,24-1,30) |
|
0,950 (0,245-1,71) |
1,44 (0,255-1,940) |
|
Annual Energy Consumption 2) |
kWh |
235 |
|
268 |
|
430 |
630 |
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
654 / 684 |
|
678 / 702 |
|
750 / 768 |
750 / 804 |
|
Moisture removal volume |
|
l/h |
1,3 |
|
1,5 |
|
2,0 |
2,4 |
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
37 / 24 / 20 |
|
39 / 25 / 20 |
|
42 / 28 / 20 |
43 / 31 / 25 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
38 / 25 / 20 |
|
40 / 27 / 20 |
|
42 / 33 / 20 |
43 / 35 / 29 |
|
Sound power Level |
Cooling (Hi) |
dB |
53 |
|
55 |
|
58 |
59 |
|
Heating (Hi) |
dB |
54 |
|
56 |
|
58 |
59 |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
|
290 x 870 x 204 |
|
290 x 870 x 204 |
290 x 870 x 204 |
|
Net weight |
kg |
9 |
|
9 |
|
9 |
9 |
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
|
Patrol + E-ion |
Patrol + E-ion |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
230 |
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 1,5 |
4 x 1,5 |
|
Current Cooling |
Nominal |
A |
2,2 |
|
2,5 |
|
4,0 |
5,7 |
|
Current Heating |
Nominal |
A |
3,0 |
|
3,4 |
|
4,4 |
6,6 |
|
Max. current |
A |
4,7 |
|
5,8 |
|
7,8 |
9,0 |
|
Air Volume |
Cooling / Heating |
m³/h |
2,034 / 2,034 |
|
1,788 / 1,788 |
|
1,860 / 1,860 |
1,884 / 1,884 |
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
45 |
|
46 |
|
48 |
49 |
|
Heating (Hi) |
dB(A) |
46 |
|
47 |
|
50 |
51 |
|
Sound power Level |
Cooling (Hi) |
dB |
60 |
|
61 |
|
63 |
64 |
|
Heating (Hi) |
dB |
61 |
|
62 |
|
65 |
66 |
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
|
540 x 780 x 289 |
|
540 x 780 x 289 |
540 x 780 x 289 |
|
Net weight |
kg |
33 |
|
34 |
|
34 |
34 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
|
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
|
3/8" (9,52) |
|
3/8" (9,52) |
1/2" (12,70) |
|
Refrigerant Loading |
R410A |
kg |
0,830 |
|
0,950 |
|
0,980 |
1,01 |
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
|
15 |
|
15 |
15 |
|
Piping length |
Min / Max |
m |
3-15 |
|
3-15 |
|
3-15 |
3-15 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
|
7,5 |
7,5 |
|
Additional gas |
g/m |
20 |
|
20 |
|
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
|
+5 / +43 |
|
+5 / +43 |
+5 / +43 |
|
Heating Min / Max |
°C |
-5 / +24 |
|
-5 / +24 |
|
-5 / +24 |
-5 / +24 |
|

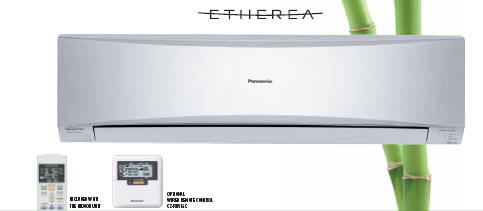

Indoor |
CS-XE18MKEW |
CS-XE21MKEW |
|
Outdoor |
CU-E18MKE |
CU-E21MKE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
5,00 (0,98-6,00) |
6,30 (0,98-7,10) |
|
Nominal (Min - Max) |
kCal/h |
4.300 (840-5.160) |
5.420 (840-6.110) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,40 (3,50-2,96) |
A |
2,85 (3,50-2,80) |
C |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,47 (0,28-2,03) |
|
2,21 (0,28-2,54) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,80 (0,98-8,00) |
|
7,20 (0,98-8,50) |
|
|
Nominal (Min - Max) |
kCal/h |
4.990 (840-6.880) |
|
6.190 (840-7.310) |
|
|
Heating capacity at -7°C |
Nominal |
kW |
4,98 |
|
5,24 |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
3,77 (2,88-3,08) |
A |
3,43 (2,88-3,09) |
B |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,54 (0,34-2,60) |
|
2,10 (0,34-2,75) |
|
|
Annual Energy Consumption 2) |
kWh |
735 |
|
1.105 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
978 / 1.074 |
|
1.038 / 1.110 |
|
|
Moisture removal volume |
l/h |
2,8 |
|
3,5 |
|
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
44 / 37 / 34 |
|
45 / 37 / 34 |
|
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
44 / 37 / 34 |
|
45 / 37 / 34 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
60 |
|
61 |
|
|
Heating (Hi) |
dB |
60 |
|
61 |
|
|
Dimensions |
H x W x D |
mm |
290 x 1.070 x 235 |
|
290 x 1.070 x 235 |
|
|
Net weight |
kg |
12 |
|
12 |
|
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
|
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
|
Connection |
mm² |
4 x 2,5 |
|
4 x 2,5 |
|
|
Current Cooling |
Nominal |
A |
6,6 |
|
9,9 |
|
|
Current Heating |
Nominal |
A |
6,9 |
|
9,4 |
|
|
Max, current |
A |
11,4 |
|
12,1 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
2.352 / 2.274 |
|
2.502 / 2.424 |
|
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
47 |
|
48 |
|
|
Heating (Hi) |
dB(A) |
47 |
|
49 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
61 |
|
62 |
|
|
Heating (Hi) |
dB |
61 |
|
63 |
|
|
Dimensions 4) |
H x W x D |
mm |
695 x 875 x 320 |
|
695 x 875 x 320 |
|
|
Net weight |
kg |
45 |
|
46 |
|
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
|
|
Gas pipe |
inch (mm) |
1/2" (12,70) |
|
1/2" (12,70) |
|
|
Refrigerant Loading |
R410A |
kg |
1,22 |
|
1,28 |
|
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
|
15 |
|
|
Piping length |
Min / Max |
m |
3-20 |
|
3-20 |
|
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
|
|
Additional gas |
g/m |
20 |
|
20 |
|
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
|
+5 / +43 |
|
|
Heating Min / Max |
°C |
-5 / +24 |
|
-5 / +24 |
|
|

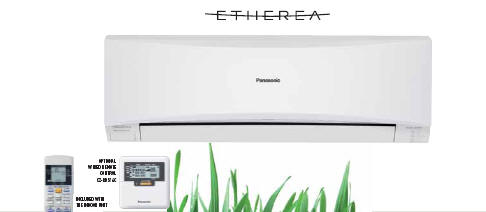

Indoor |
CS-E7MKEW |
CS-E9MKEW |
CS-E12MKEW |
CS-E15MKEW |
|
Outdoor |
CU-E7MKE |
CU-E9MKE |
CU-E12MKE |
CU-E15MKE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,05 (0,75-2,40) |
2,50 (0,85-3,00) |
3,50 (0,85-4,00) |
4,20 (0,85-5,00) |
|
Nominal (Min - Max) |
kCal/h |
1.760 (650-2.060) |
2.150 (730-2.580) |
3.010 (730-3.440) |
3.610 (730-4.300) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,36 (3,13-4,14) |
A |
4,67 (3,47-4,11) |
A |
4,07 (3.40-3,54) |
A |
3,33 (3,27-3,18) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,47 (0,240-0,580) |
0,535 (0,245-0,730) |
0,860 (0,250-1,130) |
1,26 (0,260-1,570) |
|
Heating capacity |
Nominal (Min - Max) |
kW |
2,80 (0,75-4,00) |
3,40 (0,85-5,00) |
4,00 (0,85-6,00) |
5,30 (0,85-6,80) |
|
Nominal (Min - Max) |
kCal/h |
2.410 (650-3.440) |
2.920 (730-4.300) |
3.440 (730-5.160) |
4.560 (730-5850) |
|
Heating capacity at -7°C |
Nominal |
kW |
2,35 |
2,88 |
3,46 |
3,94 |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,41 (3,26-3,92) |
A |
4,63 (3,54-3,85) |
A |
4,21 (3,47-3,51) |
A |
3,68 (3,33-3,51) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,635 (0,23-1,02) |
|
0,735 (0,24-1,30) |
|
0,950 (0,245-1,71) |
1,44 (0,255-1,940) |
|
Annual Energy Consumption 2) |
kWh |
235 |
|
268 |
|
430 |
630 |
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
654 / 684 |
|
678 / 702 |
|
750 / 768 |
750 / 804 |
|
Moisture removal volume |
l/h |
1,3 |
|
1,5 |
|
2,0 |
2,4 |
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
37 / 24 / 20 |
|
39 / 25 / 20 |
|
42 / 28 / 20 |
43 / 31 / 25 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
38 / 25 / 20 |
|
40 / 27 / 20 |
|
42 / 33 / 20 |
43 / 35 / 29 |
|
Sound power Level |
Cooling (Hi) |
dB |
53 |
|
55 |
|
58 |
59 |
|
Heating (Hi) |
dB |
54 |
|
56 |
|
58 |
59 |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
|
290 x 870 x 204 |
|
290 x 870 x 204 |
290 x 870 x 204 |
|
Net weight |
kg |
9 |
|
9 |
|
9 |
9 |
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
|
Patrol + E-ion |
Patrol + E-ion |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
230 |
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 1,5 |
4 x 1,5 |
|
Current Cooling |
Nominal |
A |
2,2 |
|
2,5 |
|
4,0 |
5,7 |
|
Current Heating |
Nominal |
A |
3,0 |
|
3,4 |
|
4,4 |
6,6 |
|
Max. current |
A |
4,7 |
|
5,8 |
|
7,8 |
9,0 |
|
Air Volume |
Cooling / Heating |
m³/h |
2.034 / 2.034 |
|
1.788 / 1.788 |
|
1.860 / 1.860 |
1.884 / 1.884 |
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
45 |
|
46 |
|
48 |
49 |
|
Heating (Hi) |
dB(A) |
46 |
|
47 |
|
50 |
51 |
|
Sound power Level |
Cooling (Hi) |
dB |
60 |
|
61 |
|
63 |
64 |
|
Heating (Hi) |
dB |
61 |
|
62 |
|
65 |
66 |
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
|
540 x 780 x 289 |
|
540 x 780 x 289 |
540 x 780 x 289 |
|
Net weight |
kg |
33 |
|
34 |
|
34 |
34 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
|
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
|
3/8" (9,52) |
|
3/8" (9,52) |
1/2" (12,70) |
|
Refrigerant Loading |
R410A |
kg |
0,830 |
|
0,950 |
|
0,980 |
1,01 |
|
Elevation difference (in / out) 5) |
Max |
m |
15 |
|
15 |
|
15 |
15 |
|
Piping length |
Min / Max |
m |
3-15 |
|
3-15 |
|
3-15 |
3-15 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
|
7,5 |
7,5 |
|
Additional gas |
g/m |
20 |
|
20 |
|
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
|
+5 / +43 |
|
+5 / +43 |
+5 / +43 |
|
Heating Min / Max |
°C |
-5 / +24 |
|
-5 / +24 |
|
-5 / +24 |
-5 / +24 |
|

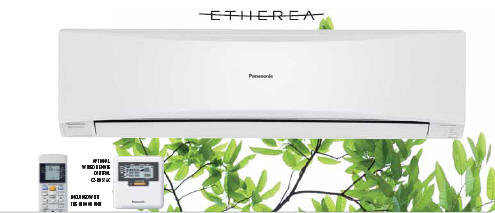

Indoor |
CS-E18MKEW |
CS-E21MKEW |
CS-E24MKES |
CS-E28MKES |
|
Outdoor |

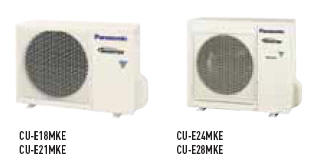

CU-E18MKE |
CU-E21MKE |
CU-E24MKE |
CU-E28MKE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
5,00 (0,98-6,00) |
6,30 (0,98-7,10) |
6,80 (0,98-8,10) |
7,65 (0,98-8,60) |
|
Nominal (Min - Max) |
kCal/h |
4.300 (840-5.160) |
5.420 (840-6.110) |
5.850 (840-6.970) |
6580 (840-7400) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,40 (3,50-2,96) |
A |
2,85 (3,50-2,80) |
C |
3,21 (2,58-3,00) |
A |
3,01 (2,58-2,92) |
B |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,47 (0,28-2,03) |
|
2,21 (0,28-2,54) |
|
2,12 (0,38-2,7) |
|
2,54 (0,38-2,95) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,80 (0,98-8,00) |
|
7,20 (0,98-8,50) |
|
8,60 (0,98-9,90) |
|
9,60 (0,98-11,00) |
|
|
Nominal (Min - Max) |
kCal/h |
4990 (840-6.880) |
|
6.190 (840-7.310) |
|
7.400 (840-8.510) |
|
8.260 (840-9460) |
|
|
Heating capacity at -7°C |
Nominal |
kW |
4,98 |
|
5,24 |
|
6,13 |
|
6,77 |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
3,77 (2,88-3,08) |
A |
3,43 (2,88-3,09) |
B |
3,23 (2,18-3,09) |
C |
2,91 (2,18-2,93) |
D |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,54 (0,34-2,60) |
|
2,10 (0,34-2,75) |
|
2,66 (0,45-3,20) |
|
3,30 (0,45-3,75) |
|
|
Annual Energy Consumption 2) |
kWh |
735 |
|
1.105 |
|
1.060 |
|
1.270 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
978 / 1.074 |
|
1.038 / 1.110 |
|
1.104 / 1.170 |
|
1.158 / 1.206 |
|
|
Moisture removal volume |
l/h |
2,8 |
|
3,5 |
|
3,9 |
|
4,5 |
|
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
44 / 37 / 34 |
|
45 / 37 / 34 |
|
47 / 38 / 35 |
|
49 / 38 / 35 |
|
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
44 / 37 / 34 |
|
45 / 37/ 34 |
|
47 / 38 / 35 |
|
48 / 38 / 35 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
60 |
|
61 |
|
63 |
|
65 |
|
|
Heating (Hi) |
dB |
60 |
|
61 |
|
63 |
|
64 |
|
|
Dimensions |
H x W x D |
mm |
290 x 1.070 x 235 |
|
290 x 1.070 x 235 |
|
290 x 1.070 x 235 |
|
290 x 1.070 x 235 |
|
|
Net weight |
kg |
12 |
|
12 |
|
12 |
|
12 |
|
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
|
Patrol + E-ion |
|
Patrol + E-ion |
|
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
|
230 |
|
|
Connection |
mm² |
4 x 2,5 |
|
4 x 2,5 |
|
4 x 2,5 |
|
4 x 2,5 |
|
|
Current Cooling |
Nominal |
A |
6,6 |
|
9,9 |
|
9,7 |
|
11,5 |
|
|
Current Heating |
Nominal |
A |
6,9 |
|
9,4 |
|
12,1 |
|
15 |
|
|
Max. current |
A |
11,4 |
|
12,1 |
|
14,6 |
|
15,6 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
2.352 / 2.274 |
|
2.502 / 2.424 |
|
3.012 / 3.012 |
|
3.270 / 3.270 |
|
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
47 |
|
48 |
|
52 |
|
53 |
|
|
Heating (Hi) |
dB(A) |
47 |
|
49 |
|
52 |
|
53 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
61 |
|
62 |
|
66 |
|
67 |
|
|
Heating (Hi) |
dB |
61 |
|
63 |
|
66 |
|
67 |
|
|
Dimensions 4) |
H x W x D |
mm |
695 x 875 x 320 |
|
695 x 875 x 320 |
|
795 x 875 x 320 |
|
795 x 875 x 320 |
|
|
Net weight |
kg |
45 |
|
46 |
|
65 |
|
66 |
|
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
|
1/4" (6,35) |
|
1/4" (6,35) |
|
|
Gas pipe |
inch (mm) |
1/2" (12,70) |
|
1/2" (12,70) |
|
5/8" (15,88) |
|
5/8" (15,88) |
|
|
Refrigerant Loading |
R410A |
kg |
1,122 |
|
1,28 |
|
1,70 |
|
1,80 |
|
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
|
15 |
|
20 |
|
20 |
|
|
Piping length |
Min / Max |
m |
3-20 |
|
3-20 |
|
3-30 |
|
3-30 |
|
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
|
10 |
|
10 |
|
|
Additional gas |
g/m |
20 |
|
20 |
|
30 |
|
30 |
|
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
|
+5 / +43 |
|
+16 / +43 |
|
+16 / +43 |
|
|
Heating Min / Max |
°C |
-5 / +24 |
|
-5 / +24 |
|
-5 / +24 |
|
-5 / +24 |
|
|
SILVER KIT |
|
|
KIT-XE7-MKE-3 |
KIT-XE9-MKE-3 |
KIT-XE12-MKE-3 |
KIT-XE15-MKE-3 |
|

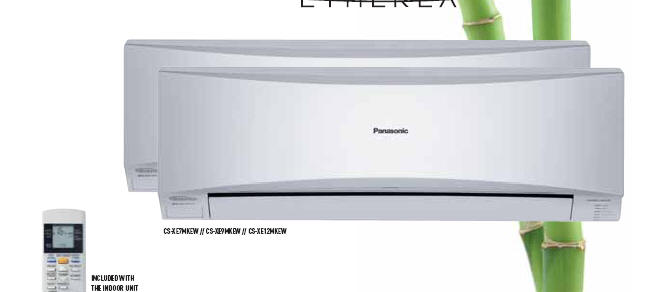

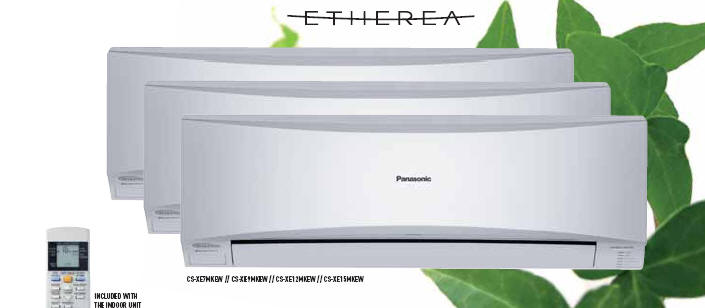

Indoor |
CS-XE7MKEW |
CS-XE9MKEW |
CS-XE12MKEW |
CS-XE15MKE-3 |
|
Outdoor |
CU-E7MKE-3 |
CU-E9MKE-3 |
CU-E12MKE-3 |
CU-E15MKE-3 |
|

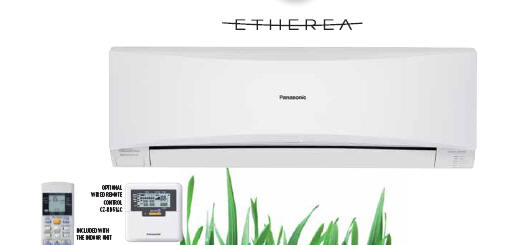

WHITE KIT KIT-E7-MKE-3 KIT-E9-MKE-3
KIT-E12-MKE-3 KIT-E15-MKE-3 |
|
Indoor |
CS-E7MKEW |
CS-E9MKEW |
CS-E12MKEW |
CS-E15MKEW-3 |
|
Outdoor |
CU-E7MKE-3 |
CU-E9MKE-3 |
CU-E12MKE-3 |
CU-E15MKE-3 |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,05 (0,75-2,40) |
2,50 (0,85-3,00) |
3,50 (0,85-4,00) |
4,20 (0,98-5,00) |
|
Nominal (Min - Max) |
kCal/h |
1.760 (650-2.060) |
2.150 (730-2.580) |
3.010 (730-3.440) |
3.610 (840-4.300) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,36 (3,13-4,14) |
A |
4,67 (3,47-4,11) |
A |
3,87 (3,40-3,39) |
A |
3,44 (3,50-3,13) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,47 (0,24-0,58) |
|
0,535 (0,245-0,730) |
0,905 (0,250-1,180) |
1,22 (0,28-1,60) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
2,80 (0,75-4,00) |
|
3,40 (0,85-5,00) |
4,40 (0,85-6,70) |
5,40 (0,98-7,10) |
|
|
Nominal (Min - Max) |
kCal/h |
2.410 (650-3.440) |
|
2.920 (730-4.300) |
3.780 (730-5.760) |
4.640 (840-6110) |
|
|
Heating capacity at -7°C |
Nominal |
kW |
2,35 |
|
2,88 |
3,75 |
4,10 |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,41 (3,26-3,92) |
A |
4,63 (3,54-3,85) |
A |
4,04 (3,47-3,47) |
A |
3,70 (2,88-3,21) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,635 (0,23-1,02) |
|
0,735 (0,240-1,30) |
1,09 (0,245-1,93) |
|
1,46 (0,340-2,210) |
|
Annual Energy Consumption 2) |
|
kWh |
235 |
|
268 |
453 |
|
610 |
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
654 / 684 |
|
678 / 702 |
750 / 768 |
|
750 / 804 |
|
Moisture removal volume |
l/h |
1,3 |
|
1,5 |
2,0 |
|
2,4 |
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
37 / 24 / 20 |
|
39 / 25 / 20 |
42 / 28 / 20 |
|
43 / 32 / 29 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
38 / 25 / 20 |
|
40 / 27 / 20 |
42 / 33 / 20 |
|
43 / 35 / 29 |
|
Sound power Level |
Cooling (Hi) |
dB |
53 |
|
55 |
58 |
|
59 |
|
Heating (Hi) |
dB |
54 |
|
56 |
58 |
|
59 |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
|
290 x 870 x 204 |
290 x 870 x 204 |
|
290 x 870 x 204 |
|
Net weight |
kg |
9 |
|
9 |
9 |
|
9 |
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
Patrol + E-ion |
|
Patrol + E-ion |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
230 |
|
230 |
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
4 x 1,5 |
|
4 x 1,5 |
|
Current (Nominal) |
Cooling / Heating |
A |
2,2 / 3,0 |
|
2,5 / 3,4 |
4,1 / 5,1 |
|
5,5 / 6,6 |
|
Max. current |
A |
4,7 |
|
5,8 |
8,9 |
|
9,7 |
|
Air Volume |
Cooling / Heating |
m³/h |
2.034 / 2.034 |
|
1.788 / 1.788 |
1.860 / 1.860 |
|
2.052 / 1.980 |
|
Sound pressure Level 3) |
Cooling / Heating (Hi) |
dB(A) |
45 / 46 |
|
46 / 47 |
48 / 50 |
|
46 / 46 |
|
Sound power Level |
Cooling / Heating (Hi) |
dB |
60 / 61 |
|
61 / 62 |
63 / 65 |
|
61 / 61 |
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
|
540 x 780 x 289 |
540 x 780 x 289 |
|
695 x 875 x 320 |
|
Net weight |
kg |
33 |
|
34 |
34 |
|
45 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
1/4" (6,35) |
|
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
|
3/8" (9,52) |
3/8" (9,52) |
|
1/2" (12,70) |
|
Refrigerant Loading |
R410A |
kg |
0,830 |
|
0,950 |
0,970 |
|
1,04 |
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
|
15 |
15 |
|
15 |
|
Piping length |
Min / Max |
m |
3-15 |
|
3-15 |
3-15 |
|
3-15 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
7,5 |
|
7,5 |
|
Additional gas |
g/m |
20 |
|
20 |
20 |
|
20 |
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
|
+5 / +43 |
+5 / +43 |
|
+5 / +43 |
|
Heating Min / Max |
°C |
-15 / +24 |
|
-15 / +24 |
-15 / +24 |
|
-15 / +24 |
|
KIT |
|
|
KIT-RE9-JKE-1 |
KIT-RE12-JKE-1 |
KIT-RE15-JKE-1 |
KIT-RE18-JKE-1 |
KIT-RE24-JKE-1 |
|
Indoor |
|
|
CS-RE9JKE-1 |
CS-RE12JKE-1 |
CS-RE15JKE-1 |
CS-RE18JKE-1 |
CS-RE24JKE-1 |
|
Outdoor |
|
|
CU-RE9JKE-1 |
CU-RE12JKE-1 |
CU-RE15JKE-1 |
CU-RE18JKE-1 |
CU-RE24JKE-1 |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,50 (0,90-3,00) |
3,50 (0,90-3,90) |
4,20 (1,00-4,60) |
5,00 (0,90-6,00) |
6,80 (0,90-8,10) |
|
Nominal (Min - Max) |
kCal/h |
2.150 (770-2.580) |
3.010 (770-3.350) |
3.610 (860-3960) |
4.300 (770-5.160) |
5.850 (770-6.970) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,57 (4,74-3,00) |
A |
3,47 (5,29-3,25) |
A |
3,33 (4,76-2,78) |
A |
3,40 (4,19-2,96) |
A |
3,21 (2,57-3,00) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,70 (0,19-1,00) |
|
1,01 (0,17-1,2) |
|
1,26 (0,21-1,65) |
|
1,47 (0,215-2,03) |
|
2,12 (0,35-2,70) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
3,30 (0,90-4,10) |
|
4,25 (0,90-5,10) |
|
5,00 (0,90-6,80) |
|
5,80 (0,90-8,00) |
|
8,60 (0,90-9,90) |
|
|
Nominal (Min - Max) |
kCal/h |
2.840 (770-3.520) |
|
3.660 (770-4.390) |
|
4.300 (770-5848) |
|
4.990 (770-6.880) |
|
7.400 (770-8.510) |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,02 (5,29-3,57) |
A |
3,79 (6,00-3,49) |
A |
3,61 (4,28-2,98) |
A |
3,77 (3,67-3,08) |
A |
3,23 (2,50-3,09) |
C |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,82 (0,17-1,15) |
|
1,12 (0,15-1,46) |
|
1,385(0,21-2,280) |
|
1,54 (0,245-2,60) |
|
2,66 (0,36-3,20) |
|
|
Annual Energy Consumption 2) |
|
kWh |
350 |
|
505 |
|
630 |
|
735 |
|
1.060 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
|
V |
230 (Via outdoor) |
|
230 (Via outdoor) |
|
230 (Via outdoor) |
|
230 (Via outdoor) |
|
230 (Via outdoor) |
|
|
Connection |
|
mm² |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 1,5 |
|
4 x 2,5 |
|
4 x 2,5 |
|
|
Current Cooling |
Nominal |
A |
3,30 |
|
4,7 |
|
6,00 |
|
6,7 |
|
9,7 |
|
|
Current Heating |
Nominal |
A |
3,70 |
|
5,2 |
|
6,30 |
|
7,0 |
|
12,1 |
|
|
Max. current |
|
A |
5,10 |
|
6,80 |
|
10,5 |
|
11,7 |
|
14,6 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
750 / 750 |
|
756 / 798 |
|
840 / 936 |
|
978 / 1.074 |
|
1.104 / 1.170 |
|
|
Moisture removal volume |
|
l/h |
1,4 |
|
2,0 |
|
2,4 |
|
2,8 |
|
3,9 |
|
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
42 / 27 / 22 |
|
42 / 30 / 22 |
|
46 / 31 / 29 |
|
44 / 37 |
|
47 / 38 |
|
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
42 / 27 / 25 |
|
42 / 33 / 25 |
|
46 / 34 / 28 |
|
44 / 37 |
|
47 / 38 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
58 |
|
58 |
|
62 |
|
60 |
|
63 |
|
|
Heating (Hi) |
dB |
58 |
|
58 |
|
62 |
|
60 |
|
63 |
|
|
Dimensions |
H x W x D |
mm |
290 x 848 x 204 |
|
290 x 848 x 204 |
|
290 x 848 x 204 |
|
290 x 1.070 x 235 |
|
290 x 1.070 x 235 |
|
|
Net weight |
|
kg |
9 |
|
9 |
|
9 |
|
12 |
|
12 |
|
|
Air purifier filter |
|
|
Alleru-buster filter |
Alleru-buster filter |
Alleru-buster filter |
Alleru-buster filter |
Alleru-buster filter |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
1.734 / 1.734 |
1.830 / 1.830 |
1.872 / 1.794 |
2.400 / 2.316 |
3.012 / 3.012 |
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
47 |
48 |
50 |
47 |
52 |
|
Heating (Hi) |
dB(A) |
48 |
50 |
51 |
47 |
52 |
|
Sound power Level |
Cooling (Hi) |
dB |
63 |
64 |
66 |
61 |
66 |
|
Heating (Hi) |
dB |
64 |
66 |
67 |
61 |
66 |
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
540 x 780 x 289 |
540 x 780 x 289 |
750 x 875 x 345 |
795 x 875 x 320 |
|
Net weight |
|
kg |
24 |
28 |
36 |
48 |
65 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
1/2" (12,70) |
1/2" (12,70) |
5/8" (15,88) |
|
Refrigerant Loading |
R410A |
kg |
0,85 |
0,970 |
1,00 |
1,15 |
1,70 |
|
Elevation difference (in/out) 5) |
Max |
m |
5 |
5 |
5 |
15 |
20 |
|
Piping length |
Min / Max |
m |
3-15 |
3-15 |
3-15 |
3-20 |
3-30 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
7,5 |
7,5 |
10 |
10 |
|
|
|
|
|
|
|
|
Additional gas |
|
g/m |
20 |
20 |
20 |
20 |
30 |
|
Operating range 3) |
Cooling Min / Max |
°C |
+5 / +43 |
+5 / +43 |
+5 / +43 |
+5 / +43 |
+16 / +43 |
|
Heating Min / Max |
°C |
-5 / +24 |
-5 / +24 |
-5 / +24 |
-5 / +24 |
-5 / +24 |
|
KIT |
|
|
KIT-E9-HKEA |
KIT-E12-HKEA |
KIT-E15-HKEA |
KIT-E18-HKEA |
KIT-E21-HKEA |
|
Indoor |
CS-E9HKEA |
CS-E12HKEA |
CS-E15HKEA |
CS-E18HKEA |
CS-E21HKEA |
|
Outdoor |
CU-E9HKEA |
CU-E12HKEA |
CU-E15HKEA |
CU-E18HKEA |
CU-E21HKEA |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,60 (0,60-3,00) |
3,50 (0,60-4,00) |
4,40 (0,90-5,00) |
5,30 (0,90-6,00) |
6,30 (0,90-7,10) |
|
Nominal (Min - Max) |
kCal/h |
2.240 (690-2.580) |
3.010 (690-3.440) |
3.780 (690-4.300) |
4.560 (770-5.160) |
5.420 (770-6.110) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,41 (5,00-4,00) |
A |
3,80 (5,00-3,39) |
A |
3,21 (4,19-3,13) |
A |
3,21 (4,19-2,93) |
A |
2,85 (4,19-2,8) |
C |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,59 (0,12-0,75) |
|
0,92 (0,12-1,18) |
|
1,37 (0,215-1,6) |
|
1,65 (0,215-2,05) |
|
2,21 (0,215-2,54) |
|
Heating capacity |
Nominal (Min - Max) |
kW |
3,60 (0,60-5,40) |
|
4,80 (0,60-6,60) |
|
5,50 (0,90-7,10) |
|
6,60 (0,90-8,00) |
|
7,20 (0,90-8,50) |
|
Nominal (Min - Max) |
kCal/h |
3.100 (520-4.640) |
|
4.130 (520-5.680) |
|
4.730 (770-6.110) |
|
5.680 (770-6.880) |
|
6.190 (770-7.310) |
|
Heating capacity at -7°C |
Nominal |
kW |
3,13 |
|
3,86 |
|
3,98 |
|
4,98 |
|
5,24 |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,26 (5,22-3,97) |
A |
3,81 (5,22-3,57) |
A |
3,50 (3,67-3,16) |
B |
3,69 (3,67-3,02) |
A |
3,43 (3,67-3,09) |
B |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,845 (0,115-1,36) |
1,26 (0,115-1,85) |
|
1,57 (0,245-2,25) |
|
1,79 (0,245-2,65) |
|
2,10 (0,245-2,75) |
|
|
Annual Energy Consumption 2) |
|
kWh |
295 |
460 |
|
685 |
|
825 |
|
1.105 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
230 |
|
230 |
|
230 |
|
230 |
|
|
Connection |
mm² |
4 x 1,5 |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 2,5 |
|
4 x 2,5 |
|
|
Current Cooling |
Nominal |
A |
2,9 |
4,3 |
|
6,3 |
|
7,5 |
|
9,9 |
|
|
Current Heating |
Nominal |
A |
4,0 |
5,8 |
|
7,1 |
|
8,1 |
|
9,3 |
|
|
Max. current |
A |
6,4 |
8,4 |
|
10,2 |
|
11,9 |
|
12,6 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
576 / 630 |
642 / 672 |
|
660 / 708 |
|
912 / 1.002 |
|
972 / 1.038 |
|
|
Moisture removal volume |
l/h |
1,6 |
2,0 |
|
2,4 |
|
2,9 |
|
3,5 |
|
|
Sound pressure Level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
39 / 26 / 23 |
42 / 29 / 26 |
|
43 / 32 / 29 |
|
44 / 37 / 34 |
|
45 / 37 / 34 |
|
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
40 / 27 / 24 |
42 / 33 / 30 |
|
43 / 35 / 32 |
|
44 / 37 / 34 |
|
45 / 37 / 34 |
|
|
Sound power Level |
Cooling (Hi) |
dB |
50 |
53 |
|
54 |
|
57 |
|
58 |
|
|
Heating (Hi) |
dB |
51 |
53 |
|
54 |
|
57 |
|
58 |
|
|
Dimensions |
H x W x D |
mm |
280 x 799 x 183 |
280 x 799 x 183 |
|
280 x 799 x 183 |
|
275 x 998 x 230 |
|
275 x 998 x 230 |
|
|
Net weight |
kg |
9 |
9 |
|
9 |
|
11 |
|
11 |
|
|
Air purifier filter |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
1.788 / 1.788 |
1.860 / 1.860 |
2.910 / 2.808 |
2.400 / 2.400 |
2.568/ 2.490 |
|
Sound pressure Level 3) |
Cooling (Hi) |
dB(A) |
46 |
48 |
46 |
47 |
48 |
|
Heating (Hi) |
dB(A) |
47 |
50 |
46 |
47 |
49 |
|
Sound power Level |
Cooling (Hi) |
dB |
59 |
61 |
59 |
60 |
61 |
|
Heating (Hi) |
dB |
60 |
63 |
59 |
60 |
62 |
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
540 x 780 x 289 |
750 x 875 x 345 |
750 x 875 x 345 |
750 x 875 x 345 |
|
Net weight |
kg |
35 |
35 |
48 |
49 |
51 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
1/2" (12,70) |
1/2" (12,70) |
1/2" (12,70) |
1/2" (12,70) |
|
Refrigerant Loading |
R410A |
kg |
0,930 |
0,970 |
1,060 |
1,18 |
1,29 |
|
Elevation difference (in/out) 5) |
Max |
m |
5 |
5 |
5 |
15 |
15 |
|
Piping length |
Min / Max |
m |
3-15 |
3-15 |
3-15 |
3-20 |
3-20 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
7,5 |
7,5 |
10 |
10 |
|
Additional gas |
g/m |
20 |
20 |
20 |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
°C |
-15 / +43 |
-15 / +43 |
-15 / +43 |
-15 / +43 |
-15 / +43 |
|
Heating Min / Max |
°C |
-10 / +24 |
-10 / +24 |
-15 / +24 |
-15 / +24 |
-15 / +24 |
|
KIT |
KIT-PW9-GKE |
KIT-PW12-GKE |
KIT-PW18-GKE |
KIT-PW24-JKE |
|
Indoor |
CS-PW9GKE |
CS-PW12GKE |
CS-PW18GKE |
CS-PW24JKE |
|
Outdoor |
CU-PW9GKE |
CU-PW12GKE |
CU-PW18GKE |
CU-PW24JKE |
|
Cooling capacity |
Nominal |
kW |
2,65 |
3,4 |
5,10 |
7,03 |
|
kCal/h |
2.280 |
2.920 |
4.386 |
6.046 |
|
EER 1) |
Nominal |
Energy Saving |
3,21 |
A |
3,22 |
A |
2,91 |
C |
2,53 |
E |
|
Power input Cooling |
Nominal |
kW |
0,825 |
|
1,055 |
|
1,75 |
|
2,78 |
|
|
Heating capacity |
Nominal |
kW |
2,85 |
|
3,8 |
|
5,30 |
|
7,50 |
|
|
kCal/h |
2.450 |
|
3.260 |
|
4.560 |
|
6.450 |
|
|
COP 1) |
Nominal |
Energy Saving |
3,63 |
A |
3,61 |
A |
3,35 |
C |
2,87 |
D |
|
Power input Heating |
Nominal |
kW |
0,785 |
|
1,05 |
|
1,58 |
|
2,61 |
|
|
Annual Energy Consumption 2) |
kWh |
413 |
|
528 |
|
875 |
|
1.390 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
|
230 |
|
|
Connection |
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 2,5 |
|
Current Cooling |
Nominal |
A |
3,9 |
5,0 |
7,7 |
13,1 |
|
Current Heating |
Nominal |
A |
3,7 |
4,9 |
6,9 |
12,5 |
|
Air Volume |
Cooling / Heating |
m³/h |
618 / 618 |
540 / 552 |
972 / 984 |
1.044 / 1.092 |
|
Moisture removal volume |
|
l/h |
1,6 |
1,9 |
2,9 |
4,0 |
|
Sound pressure level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
39 / 31 |
39 / 32 |
45 / 38 |
47 / 41 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
29 / 38 |
39 / 31 |
43 / 38 |
46 / 41 |
|
Sound power level |
Cooling (Hi) |
dB |
50 |
50 |
58 |
59 |
|
Heating (Hi) |
dB |
50 |
50 |
56 |
57 |
|
Dimensions |
H x W x D |
mm |
250 x 770 x 205 |
280 x 799 x 183 |
275 x 998 x 230 |
275 x 998 x 230 |
|
Net weight |
kg |
7,5 |
9 |
11 |
11 |
|
Air purifier filter |
Optional |
|
CZ-SA14P Alleru-buster filter |
CZ-SA14P Alleru-buster filter |
CZ-SA14P Alleru-buster filter |
CZ-SA14P Alleru-buster filter |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
630 |
672 |
1.740 |
3.102 |
|
Sound pressure level 3) |
Cooling (Hi) |
dB(A) |
48 |
49 |
55 |
54 |
|
Heating (Hi) |
dB(A) |
49 |
50 |
55 |
55 |
|
Sound power level |
Cooling (Hi) |
dB |
61 |
62 |
70 |
69 |
|
Heating (Hi) |
dB |
62 |
63 |
70 |
70 |
|
Dimensions 4) |
H x W x D |
mm |
530 x 650 x 230 |
540 x 780 x 289 |
540 x 780 x 289 |
750 x 875 x 345 |
|
Net weight |
kg |
27 |
30 |
44 |
63 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
1/2" (12,70) |
5/8" (15,88) |
|
Refrigerant Loading |
R410A |
kg |
0,80 |
0,98 |
1,33 |
1,82 |
|
Elevation difference (in/out) 5) |
Max |
m |
5 |
5 |
20 |
20 |
|
Piping length |
Min / Max |
m |
3 / 10 |
3 / 15 |
3 / 25 |
3 / 25 |
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
7,5 |
7,5 |
7,5 |
|
Additional gas |
|
g/m |
20 |
20 |
20 |
30 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
21 / 43 |
21 / 43 |
16 / 43 |
16 / 43 |
|
Heating Min / Max |
ºC |
-5 / 24 |
-5 / 24 |
-5 / 24 |
-5 / 24 |
|
KIT |
KIT-V7-DKE |
KIT-V9-DKE |
KIT-V12-DKE |
KIT-V18-DKE |
KIT-V24-DKE |
KIT-V28-EKE |
|
Indoor |
CS-V7DKE |
CS-V9DKE |
CS-V12DKE |
CS-V18DKE |
CS-V24DKE |
CS-V28EKE |
|
Outdoor |
CU-V7DKE |
CU-V9DKE |
CU-V12DKE |
CU-V18DKE |
CU-V24DKE |
CU-V28EKE |
|
Cooling capacity |
Nominal |
kW |
2,40 |
3,00 |
3,68 |
5,30 |
7,03 |
7,91 |
|
kCal/h |
2.064 |
2.580 |
3.165 |
4.558 |
6.046 |
6.803 |
|

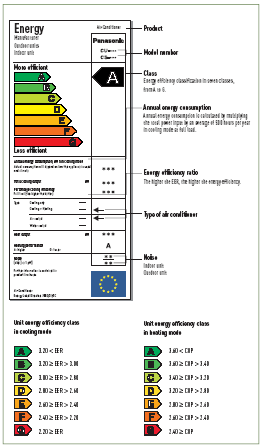

EER 1) |
Nominal |
Energy Saving |
3,24 |
A |
3,21 |
A |
3,23 |
A |
3,25 |
A |
2,70 |
A |
3,22 |
A |
|
Power input Cooling |
Nominal |
kW |
0,740 |
|
0,935 |
|
1,140 |
|
1,630 |
|
2,600 |
|
2,460 |
|
|
Annual Energy Consumption 2) |
kWh |
370 |
|
470 |
|
570 |
|
815 |
|
1.300 |
|
1.230 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
|
230 |
|
230 |
|
230 |
|
|
Connection |
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 2,5 |
4 x 2,5 |
4 x 2,5 |
|
Current Cooling |
Nominal |
A |
3,4 |
4,2 |
5,3 |
7,3 |
12,3 |
11,3 |
|
Air Volume |
m³/h |
468 |
510 |
570 |
888 |
1.014 |
1.206 |
|
Moisture removal volume |
l/h |
1,5 |
1,7 |
2,1 |
2,9 |
4,0 |
4,6 |
|
Sound pressure level 3) |
Hi / Lo / S-Lo |
dB(A) |
33 / 26 / 24 |
35 / 26 / 24 |
39 / 29 / 27 |
42 / 37 / 35 |
46 / 40 / 38 |
49 / 44 / 42 |
|
Sound power level |
Hi |
dB |
46 |
48 |
52 |
54 |
59 |
62 |
|
Dimensions |
H x W x D |
mm |
280 x 799 x 183 |
280 x 799 x 183 |
280 x 799 x 183 |
275 x 998 x 230 |
275 x 998 x 230 |
340 x 1.150 x 260 |
|
Net weight |
kg |
9 |
9 |
9 |
11 |
11 |
18 |
|
Air purifier filter |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter + Ion |
Alleru-buster filter+ Ion |
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
|
m³/h |
1.560 |
1.980 |
1.848 |
.520 |
2.790 |
3.180 |
|
Sound pressure level 3) |
Hi |
dB(A) |
46 |
48 |
49 |
54 |
54 |
55 |
|
Sound power level |
Hi |
dB |
61 |
63 |
64 |
69 |
69 |
70 |
|
Dimensions 4) |
H x W x D |
mm |
510 x 650 x 230 |
540 x 780 x 289 |
540 x 780 x 289 |
750 x 875 x 345 |
750 x 875 x 345 |
750 x 875 x 345 |
|
Net weight |
|
kg |
25 |
31 |
33 |
50 |
59 |
62 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
1/2" (12,70) |
1/2" (12,70) |
5/8" (15,88) |
5/8" (15,88) |
|
Refrigerant Loading |
R410A |
kg |
0,89 |
0,93 |
1,05 |
1,34 |
1,47 |
1,9 |
|
Elevation difference (in/out) 5) |
Max |
m |
5 |
5 |
5 |
20 |
20 |
20 |
|
Piping length |
Min / Max |
m |
3 / 10 |
3 / 10 |
3 / 15 |
3 / 25 |
3 / 25 |
3 / 30 |
|
Piping length without |
Max |
m |
7,5 |
7,5 |
7,5 |
7,5 |
7,5 |
7,5 |
|
refrigerant increase |
|
Additional gas |
g/m |
10 |
10 |
15 |
20 |
30 |
30 |
|
Operating range 3) |
Min / Max |
ºC |
16 / 43 |
16 / 43 |
16 / 43 |
16 / 43 |
16 / 43 |
16 / 43 |
|

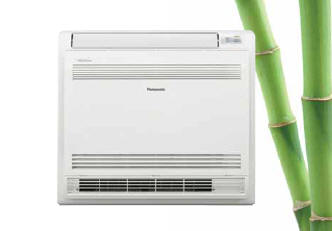

KIT |
|
|
KIT-E9-GFEW-1 |
KIT-E12-GFEW-1 |
KIT-E18-GFEW-1 |
|
Indoor |
CS-E9GFEW |
CS-E12GFEW |
CS-E18GFEW |
|

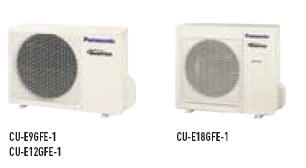

Outdoor |
CU-E9GFE-1 |
CU-E12GFE-1 |
CU-E18GFE-1 |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
2,50 (0,80 - 3,00) |
3,50 (0,80 - 3,80) |
5,00 (0,90 - 5,60) |
|
kCal/h |
2.150 (690 - 2.580) |
3.010 (690 - 3.270) |
3.780 (770 - 4.300) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,39 (4,57 - 3,85) |
A |
3,63 (4,32 - 3,33) |
A |
3,23 (4,57 - 2,93) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
0,57 (0,17 - 0,78) |
|
0,97 (0,18 - 1,14) |
|
1,55 (0,25 - 1,91) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
3,60 (0,80 - 5,00) |
|
4,80 (0,80 - 6,10) |
|
5,80 (0,90 - 7,10) |
|
|
kCal/h |
3.100 (690 - 4.300) |
|
4.130 (690 - 5.250) |
|
4.730 (770 - 6.110) |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,16 (4,85 - 3,68) |
A |
3,64 (4.57 - 3,45) |
A |
3,63 (3,46 - 3,02) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
0,865 (0,16 - 1,36) |
|
1,320 (0,17 - 1,77) |
|
1,600 (0,26 - 2,35) |
|
|
Annual Energy Consumption 2) |
kWh |
285 |
|
483 |
|
775 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
558 / 576 |
|
570 / 600 |
|
660 / 780 |
|
|
Moisture removal volume |
l/h |
1,4 |
|
2,0 |
|
2,8 |
|
|
Sound pressure level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
38 / 27 / 23 |
|
39 / 28 / 24 |
|
44 / 36 / 32 |
|
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
38 / 27 / 23 |
|
39 / 27 / 23 |
|
44 / 36 / 32 |
|
|
Sound power level |
Cooling (Hi) |
dB |
54 |
|
55 |
|
60 |
|
|
Heating (Hi) |
dB |
54 |
|
55 |
|
61 |
|
|
Dimensions |
H x W x D |
mm |
600 x 700 x 210 |
|
600 x 700 x 210 |
|
600 x 700 x 210 |
|
|
Net weight |
kg |
14 |
|
14 |
|
14 |
|
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
|
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 1,5 |
|
|
Current Cooling |
A |
2,7 |
|
4,4 |
|
7,0 |
|
|
Current Heating |
A |
4,05 |
|
6,00 |
|
7,1 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
1.788 / 1.788 |
|
1.860 / 1.860 |
|
2.400 / 2.400 |
|
|
Sound pressure level 3) |
Cooling (Hi) |
dB(A) |
46 |
|
48 |
|
47 |
|
|
Heating (Hi) |
dB(A) |
47 |
|
50 |
|
48 |
|
|
Sound power level |
Cooling (Hi) |
dB |
59 |
|
61 |
|
60 |
|
|
Heating (Hi) |
dB |
60 |
|
63 |
|
61 |
|
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 x 289 |
|
540 x 780 x 289 |
|
750 x 875 x 345 |
|
|
Net weight |
kg |
34 |
|
34 |
|
49 |
|
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
|
1/4" (6,35) |
|
1/4" (6,35) |
|
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
|
3/8" (9,52) |
|
1/2" (12,70) |
|
|
Refrigerant Loading |
R410A |
kg |
0,965 |
|
0,980 |
|
1,060 |
|
|
Elevation difference (in/out) 5) |
Max |
m |
5 |
|
5 |
|
15 |
|
|
Piping length |
Min / Max |
m |
3 / 15 |
|
3 / 15 |
|
3 / 20 |
|
|
Piping length without refrigerant
increase |
Max |
m |
7,5 |
|
7,5 |
|
10 |
|
|
Additional gas |
g/m |
20 |
|
20 |
|
20 |
|
|
Operating range 3) |
Cooling Min / Max |
ºC |
16 / 43 |
|
16 / 43 |
|
16 / 43 |
|
|
Heating Min / Max |
ºC |
-15 / 24 |
|
-15 / 24 |
|
-15 / 24 |
|
|
KIT |
|
|
KIT-E15-DTE |
KIT-E18-DTE |
KIT-E21-DTE |
|
Indoor |
CS-E15DTEW |
CS-E18DTEW |
CS-E21DTES |
|
Outdoor |
CU-E15DBE |
CU-E18DBE |
CU-E21DBE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
4,15 (0,90 - 4,55) |
5,00 (0,90 - 5,40) |
5,80 (0,90 - 6,60) |
| |
kCal/h |
3.570 (770 - 3.910) |
4.300 (770 - 4.640) |
4.990 (770 - 5.680) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,22 |
A |
3,01 |
B |
3,01 |
B |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,29 (0,255 - 1,550) |
1,66 (0,255 - 1,890) |
1,93 (0,255 - 2,240) |
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,17 (0,90 - 6,30) |
6,10 (0,90 - 7,60) |
6,80 (0,90 - 8,10) |
| |
kCal/h |
4.450 (770 - 5.420) |
5.250 (770 - 6.540) |
5.850 (770 - 6.970) |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
3,34 |
C |
3,35 |
C |
3,42 |
B |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,550 (0,260 - 2,050) |
1,820 (0,260 - 2,380) |
1,990 (0,260 - 2,650) |
|
Annual Energy Consumption 2) |
kWh |
645 |
830 |
965 |
|
INDOOR UNIT |
|
|
|
|
|
|
Air Volume |
Cooling / Heating |
m³/h |
720 / 732 |
750 / 762 |
786 / 792 |
|
Moisture removal volume |
l/h |
2,4 |
2,8 |
3,2 |
|
Sound pressure level 3) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
45 / 37 / 34 |
46 / 39 / 36 |
47 / 41 / 38 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
45 / 33 / 30 |
47 / 35 / 32 |
47 / 37 / 34 |
|
Sound power level |
Cooling (Hi) |
dB |
58 |
59 |
60 |
|
Heating (Hi) |
dB |
58 |
60 |
60 |
|
Dimensions |
H x W x D |
mm |
540 x 1.028 x 200 |
540 x 1.028 x 200 |
540 x 1.028 x 200 |
|
Net weight |
kg |
17 |
18 |
20 |
|
Air purifier filter |
Optional |
|
CZ-SA14P Alleru-buster filter |
CZ-SA14P Alleru-buster filter |
CZ-SA14P Alleru-buster filter |
|
OUTDOOR UNIT |
|
|
|
|
|
|
Power source |
V |
230 |
230 |
230 |
|
Connection |
mm² |
4 x 1,5 |
4 x 2,5 |
4 x 2,5 |
|
Current Cooling |
Nominal |
A |
6,0 |
7,5 |
8,7 |
|
Current Heating |
Nominal |
A |
7,1 |
8,2 |
9,0 |
|
Air Volume |
Cooling / Heating |
m³/h |
2.910 / 2.910 |
2.400 / 2.400 |
2.568 / 2.490 |
|
Sound pressure level 3) |
Cooling (Hi) |
dB(A) |
46 |
47 |
48 |
|
Heating (Hi) |
dB(A) |
47 |
48 |
49 |
|
Sound power level |
Cooling (Hi) |
dB |
59 |
60 |
61 |
|
Heating (Hi) |
dB |
60 |
61 |
62 |
|
Dimensions 4) |
H x W x D |
mm |
750 x 875 x 345 |
750 x 875 x 345 |
750 x 875 x 345 |
|
Net weight |
kg |
48 |
48 |
49 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
1/2" (12,70) |
1/2" (12,70) |
1/2" (12,70) |
|
Refrigerant Loading |
R410A |
kg |
1,23 |
1,06 |
1,15 |
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
15 |
15 |
|
Piping length |
Min / Max |
m |
3 / 20 |
3 / 20 |
3 / 20 |
|
Piping length without refrigerant
increase |
Max |
m |
10 |
10 |
10 |
|
Additional gas |
g/m |
20 |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
16 / 43 |
16 / 43 |
16 / 43 |
|
Heating Min / Max |
ºC |
-5 / 24 |
-5 / 24 |
-5 / 24 |
|
|
|
|
|
|
|
|
Indoor |
CS-XE7MKEW |
CS-XE7MKEW |
CS-XE7MKEW |
CS-XE9MKEW |
|
CS-XE7MKEW |
CS-XE9MKEW |
CS-XE12MKEW |
CS-XE9MKEW |
|
|
|
|
|
|
|
|
Indoor |
CS-E7MKEW |
CS-E7MKEW |
CS-E7MKEW |
CS-E9MKEW |
|
CS-E7MKEW |
CS-E9MKEW |
CS-E12MKEW |
CS-E9MKEW |
|
Outdoor |
CU-2E15LBE |
CU-2E15LBE |
CU-2E15LBE |
CU-2E15LBE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
4,00 (1,50 - 5,00) |
4,50 (1,50 - 5,20) |
4,50 (1,50 - 5,20) |
4,50 (1,50 - 5,20) |
|
Nominal (Min - Max) |
kCal/h |
3.440 (1.290 - 4.300) |
3.870 (1.290 - 4.470) |
3.870 (1.290 - 4.470) |
3.870 (1.290 - 4.470) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,66 (6,00 - 3,70) |
A |
3,66 (6,00 - 3,70) |
A |
3,66 (6,00 - 3,42) |
A |
3,66 (6,00 - 3,42) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,09 (0,25 - 1,35) |
|
1,23 (0,25 - 1,52) |
|
1,23 (0,25 - 1,53) |
|
1,23 (0,25 - 1,52) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,40 (1,10 - 7,00) |
|
5,40 (1,10 - 7,00) |
|
5,40 (1,10 - 7,0) |
|
5,40 (1,10 - 7,0) |
|
|
Nominal (Min - Max) |
kCal/h |
4.640 (950 - 6.020) |
|
4.640 (950 - 6.020) |
|
4.640 (950 - 6.020) |
|
4.640 (950 - 6.020) |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,62 (5,24 - 4,19) |
A |
4,62 (5,24 - 4,19) |
A |
4,62 (5,24 - 4,19) |
A |
4,62 (4,61 - 4,19) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,17 (0,21 - 1,67) |
|
1,17 (0,21 - 1,67) |
|
1,17 (0,21 - 1,67) |
|
1,17 (0,21 - 1,67) |
|
|
Annual Energy Consumption 2) |
|
kWh |
545 |
|
615 |
|
615 |
|
615 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling |
m³/h |
606 |
|
606 (E7) / 606 (E9) |
|
606 (E7) / 654 (E12) |
606 |
|
|
Moisture removal volume |
l/h |
1,3 / 1,3 |
|
1,3 (E7) / 1,5 (E12) |
|
1,1 (E7) / 1,6 (E12) |
1,5 / 1,5 |
|
|
Sound pressure Level 3) |
Cooling and Heating (S-Lo) |
dB(A) |
26 |
|
26 |
|
26 (E7) / 29 (E12) |
26 |
|
|
Sound power Level |
Cooling and Heating (Hi) |
dB |
56 |
|
56 |
|
56 (E7) / 60 (E12) |
56 |
|
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
|
290 x 870 x 204 |
|
290 x 870 x 204 |
290 x 870 x 204 |
|
|
Net weight |
kg |
9 |
|
9 |
|
9 |
9 |
|
|
Air purifier filter |
Patrol + E-ion |
|
Patrol + E-ion |
|
Patrol + E-ion |
Patrol + E-ion |
|
|
|
|
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
|
230 |
230 |
|
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
|
4 x 1,5 |
4 x 1,5 |
|
|
Current |
Cooling / Heating Nominal |
A |
5,10 / 5,20 |
|
5,75 / 5,20 |
|
5,75 / 5,20 |
5,75 / 5,20 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
1.998 / 1.710 |
|
1.998 / 1.710 |
|
1.998 / 1.710 |
1.998 / 1.710 |
|
|
Sound pressure Level 3) |
Cooling / Heating (Hi) |
dB(A) |
47 / 49 |
|
47 / 49 |
|
47 / 49 |
47 / 49 |
|
|
Sound power Level |
Cooling / Heating (Hi) |
dB |
62 / 64 |
|
62 / 64 |
|
62 / 64 |
62 / 64 |
|
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
|
Net weight |
kg |
38 |
38 |
38 |
38 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
|
Refrigerant Loading |
R410A |
kg |
1,45 |
1,45 |
1,45 |
1,45 |
|
Elevation difference (in/out) 5) |
Max |
m |
10 |
10 |
10 |
10 |
|
Piping length (total) |
Min / Max |
m |
3 / 30 |
3 / 30 |
3 / 30 |
3 / 30 |
|
Piping length (one unit) |
Min / Max |
m |
3 / 20 |
3 / 20 |
3 / 20 |
3 / 20 |
|
Piping length without refrigerant
increase |
Max |
m |
20 |
20 |
20 |
20 |
|
Additional gas |
g/m |
20 |
20 |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
16 / 43 |
16 / 43 |
16 / 43 |
16 / 43 |
|
Heating Min / Max |
ºC |
-10 / 24 |
-10 / 24 |
-10 / 24 |
-10 / 24 |
|
|
|
|
|
|
|
Indoor |
CS-XE9MKEW |
CS-XE9MKEW |
CS-XE12MKEW |
|
CS-XE9MKEW |
CS-XE12MKEW |
CS-XE12MKEW |
|
WHITE KIT |
|
|
KIT-2E99-MKE |
KIT-2E912-MKE |
KIT-2E1212-MKE |
|
Indoor |
CS-E9MKEW |
CS-E9MKEW |
CS-E12MKEW |
|
CS-E9MKEW |
CS-E12MKEW |
CS-E12MKEW |
|
Outdoor |
CU-2E18LBE |
CU-2E18LBE |
CU-2E18LBE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
4,80 (1,50 - 5,20) |
5,00 (1,50 - 5,30) |
5,20 (1,50 - 5,40) |
| |
kCal/h |
4.130 (1.290 - 4.470) |
4.300 (1.290 - 4.560) |
4.470 (1.290 - 4.640) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
3,66 (6,00 - 3,42) |
A |
3,36 (6,00 - 3,44) |
A |
3,42 (6,00 - 3,42) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,31 (0,25 - 1,52) |
|
1,49 (0,25 - 1,54) |
|
1,52 (0,25 - 1,58) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,60 (1,10 - 7,20) |
|
5,60 (1,10 - 7,20) |
|
5,60 (1,10 - 7,20) |
|
| |
kCal/h |
4.820 (950 - 6.190) |
|
4.820 (950 - 6.190) |
|
4.820 (950 - 6.190) |
|
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,48 (5,24 - 4,14) |
A |
4,55 (5,24 - 4,19) |
A |
4,63 (5,24 - 4,24) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,25 (0,21 - 1,74) |
|
1,23 (0,21 - 1,72) |
|
1,21 (0,21 - 1,70) |
|
|
Annual Energy Consumption 2) |
|
kWh |
655 |
|
745 |
|
760 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling |
m³/h |
606 |
|
606 (E9) / 654 (E12) |
654 |
|
|
Moisture removal volume |
l/h |
1,5 / 1,5 |
|
1,4 (E9) / 1,6 (E12) |
1,6 / 1,6 |
|
|
Sound pressure level 3) |
Cooling and Heating (S-Lo) |
dB(A) |
26 |
|
26 (E9) / 29 (E12) |
29 |
|
|
Sound power level |
Cooling and Heating (Hi) |
dB |
56 |
|
56 (E9) / 60 (E12) |
60 |
|
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
|
290 x 870 x 204 |
290 x 870 x 204 |
|
|
Net weight |
kg |
9 |
|
9 |
9 |
|
|
Air purifier filter |
|
Patrol + E-ion |
|
Patrol + E-ion |
Patrol + E-ion |
|
|
OUTDOOR UNIT |
|
|
|
|
|
|
|
|
Power source |
V |
230 |
|
230 |
230 |
|
|
Connection |
mm² |
4 x 1,5 |
|
4 x 1,5 |
4 x 1,5 |
|
|
Current |
Cooling / Heating (Nominal) |
A |
6,10 / 5,55 |
|
6,95 / 5,45 |
7,10 / 5,35 |
|
|
Air Volume |
Cooling / Heating |
m³/h |
2.070 / 1.860 |
|
2.070 / 1.860 |
2.070 / 1.860 |
|
|
Sound pressure level 3) |
Cooling / Heating (Hi) |
dB(A) |
49 / 51 |
|
49 / 51 |
49 / 51 |
|
|
Sound power level |
Cooling / Heating (Hi) |
dB |
64 / 66 |
|
64 / 66 |
64 / 66 |
|
|
Dimensions 4) |
H x W x D |
mm |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
|
Net weight |
kg |
38 |
38 |
38 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
|
Refrigerant Loading |
R410A |
kg |
1,45 |
1,45 |
1,45 |
|
Elevation difference (in/out) 5) |
Max |
m |
10 |
10 |
10 |
|
Piping length |
Total |
m |
30 |
30 |
30 |
|
Piping length (one unit) |
Min / Max |
m |
3 / 20 |
3 / 20 |
3 / 20 |
|
Piping length without refrigerant
increase |
Max |
m |
20 |
20 |
20 |
|
Additional gas |
|
g/m |
20 |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
16 / 43 |
16 / 43 |
16 / 43 |
|
Heating Min / Max |
ºC |
-10 / 24 |
-10 / 24 |
-10 / 24 |
|
SILVER KIT |
|
|
KIT-3XE7712-MBE |
KIT-3XE7715-MBE |
|
Indoor |
CS-XE7MKEW (x2) |
CS-XE7MKEW (x2) |
|
CS-XE12MKEW (x1) |
CS-XE15MKEW (x1) |
|
WHITE KIT |
|
|
KIT-3E7712-MBE |
KIT-3E7715-MBE |
|
Indoor |
CS-E7MKEW (x2) |
CS-E7MKEW (x2) |
|
CS-E12MKEW (x1) |
CS-E15MKEW (x1) |
|
Outdoor |
CU-3E18LBE |
CU-3E18LBE |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
5,20 (1,90-7,20) |
5,20 (1,80-7,30) |
|
Nominal (Min - Max) |
kCal/h |
4.470 (1.630-6.190) |
4.470 (1.550-6.280) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,30 (5,28 - 3,30) |
A |
4,30 (5,00 - 3,35) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1.21 (0.36-2.18) |
|
1.21 (0.36-2.18) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
6,80 (1,40-8,30) |
|
6,80 (1,60-8,30) |
|
| |
Nominal (Min - Max) |
kCal/h |
5.850 (1.200-7.140) |
5.850 (1.380-7.140) |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,63 (4,38 - 3,94) |
A |
4,72 (5,00 - 3,93) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,47 (0,32-2,11) |
|
1,44 (0,32-2,11) |
|
|
Annual Energy Consumption 2) |
kWh |
745 |
|
720 |
|
|
INDOOR UNIT |
|
|
|
|
|
|
|
Air Volume |
Cooling |
m³/h |
606 (E7) / 654 (E12) |
606 (E7) / 672 (E15) |
|
Moisture removal volume |
l/h |
1,3 (E7) / 1,8 (E12) |
0,8 (E7) / 1,6 (E15) |
|
Sound pressure Level 3) |
Cooling (S-Lo) |
dB(A) |
26 (E7) / 29 (E12) |
26 (E7) / 29 (E15) |
|
Heating (S-Lo) |
dB(A) |
26 (E7) / 29 (E12) |
26 (E7) / 30 (E15) |
|
Sound power Level |
Cooling and Heating (Hi) |
dB |
56 (E7) / 60 (E12) |
56 (E7) / 60 (E15) |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
290 x 870 x 204 |
|
Net weight |
kg |
9 |
9 |
|
Air purifier filter |
|
Patrol + E-ion |
Patrol + E-ion |
|
OUTDOOR UNIT |
|
|
|
|
|
Power source |
V |
230 |
230 |
|
Connection |
mm² |
4 x 1,5 |
4 x 1,5 |
|
Current |
Cooling / Heating Nominal |
A |
5,3 / 8,2 |
5,3 / 7,9 |
|
Air Volume |
Cooling / Heating |
m³/h |
2.502 |
2.502 |
|
Sound pressure Level 3) |
Cooling / Heating (Hi) |
dB(A) |
46 / 47 |
46 / 47 |
|
Sound power Level |
Cooling / Heating (Hi) |
dB |
60 / 61 |
60 / 61 |
|
Dimensions 4) |
H x W x D |
mm |
795 x 875 (+95) x 320 |
795 x 875 (+95) x 320 |
|
Net weight |
kg |
71 |
71 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
|
Refrigerent Loading |
R410A |
kg |
2,64 |
2,64 |
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
15 |
|
Piping length (total) |
Min / Max |
m |
3 / 50 |
3 / 50 |
|
Piping length (one unit) |
Min / Max |
m |
3 / 25 |
3 / 25 |
|
Piping length without refrigerant
increase |
Max |
m |
30 |
30 |
|
Additional gas |
g/m |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
-10 / 46 |
-10 / 46 |
|
Heating Min / Max |
ºC |
-15 / 24 |
-15 / 24 |
|
|
|
|
|
|
|
|
Indoor |
|
|
CS-XE7MKEW (x3) |
CS-XE7MKEW (x3) |
CS-XE7MKEW (x3) |
CS-XE7MKEW (x3) |
|
|
|
CS-XE12MKEW (x1) |
CS-XE15MKEW (x1) |
CS-XE12MKEW (x1) |
CS-XE15MKEW (x1) |
|
|
|
|
|
|
|
|
Indoor |
|
|
CS-E7MKEW (x3) |
CS-E7MKEW (x3) |
CS-E7MKEW (x3) |
CS-E7MKEW (x3) |
|
|
|
CS-E12MKEW (x1) |
CS-E15MKEW (x1) |
CS-E12MKEW (x1) |
CS-E15MKEW (x1) |
|
Outdoor |
|
|
CU-4E23LBE |
CU-4E23LBE |
CU-4E27CBPG |
CU-4E27CBPG |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
6,80 (1,90 - 8,80) |
6,80 (1,90 - 8,80) |
8,00 (2,80 - 8,90) |
8,00 (2,80 - 8,90) |
| |
kCal/h |
5.850 (1.630 - 7.570) |
5.850 (1.630 - 7.650) |
6.880 (2.410 - 7.650) |
6.880 (2.410 - 7.650) |
|
EER 1) |
Nominal (Min - Max) |
Energy Saving |
4,12 (5,59 - 3,56) |
A |
4,12 (5,59 - 3,56) |
A |
3,76 (5,71 - 3,09) |
A |
3,76 (5,71 - 3,20) |
A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1.65 (0.34 - 2.47) |
|
1.65 (0.34 - 2.47) |
|
2,13 (0,49 - 2,88) |
|
2,10 (0,49 - 2,87) |
|
|
Heating capacity |
Nominal (Min - Max) |
kW |
8,60 (3,00 - 10,60) |
|
8,60 (3,00 - 10,60) |
|
9,40 (3,40 - 10,50) |
|
9,40 (3,80 - 10,50) |
|
| |
kCal/h |
7.400 (2.580 - 9.120) |
7.400 (2.580 - 9.120) |
8.080 (2.920 - 9.030) |
8.080 (3.270 - 9.030) |
|
COP 1) |
Nominal (Min - Max) |
Energy Saving |
4,65 (5,17 - 4,08) |
A |
4,67 (5,09 - 4,09) |
A |
4,43 (5,76 - 3,30) |
A |
4,50 (5,31 - 3,34) |
A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,85 (0,58 - 2,60) |
|
1,84 (0,59 - 2,59) |
|
2,12 (0,59 - 3,18) |
|
2,09 (0,64 - 3,14) |
|
|
Annual Energy Consumption 2) |
|
kWh |
825 |
|
825 |
|
1.065 |
|
1.055 |
|
|
|
|
|
|
|
|
|
|
|
|
|
Air Volume |
Cooling |
m³/h |
606 (E7) / 654 (E12) |
606 (E7) / 672 (E15) |
654 (E7) / 750 (E12) |
654 (E7) / 750 (E15) |
|
Moisture removal volume |
|
l/h |
0,9 (E7) / 1,5 (E12) |
0,9 (E7) / 1,6 (E15) |
1,1 (E7) / 1,6 (E12) |
1,0 (E7) / 1,8 (E15) |
|
Sound pressure level 3) |
Cooling (S-Lo) |
dB(A) |
26 (E7) / 29 (E12) |
26 (E7) / 29 (E15) |
26 (E7) / 29 (E12) |
26 (E7) / 29 (E15) |
|
Heating (S-Lo) |
dB(A) |
26 (E7) / 29 (E12) |
26 (E7) / 30 (E15) |
26 (E7) / 29 (E12) |
26 (E7) / 30 (E15) |
|
Sound power level |
Cooling and Heating (Hi) |
dB |
56 (E7) / 60 (E12) |
56 (E7) / 60 (E15) |
56 (E7) / 60 (E12) |
56 (E7) / 60 (E15) |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
290 x 870 x 204 |
290 x 870 x 204 |
290 x 870 x 204 |
|
Net weight |
|
kg |
9 |
9 |
9 |
9 |
|
Air purifier filter |
|
|
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
|
|
|
|
|
|
|
|
Power source |
|
V |
230 |
230 |
230 |
230 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Current |
Cooling /Heating (Nominal) |
A |
7,40 / 8,60 |
7,40 / 8,50 |
9,40 / 9,30 |
9,30 / 9,20 |
|
Air Volume |
Cooling / Heating |
m³/h |
2.550 |
2.550 |
2.910 |
2.910 |
|
Sound pressure level 3) |
Cooling / Heating (Hi) |
dB(A) |
48 / 49 |
48 / 49 |
48 / 49 |
48 / 49 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
62 / 63 |
62 / 63 |
61 / 62 |
61 / 62 |
|
Dimensions 4) |
H x W x D |
mm |
795 x 875 (+95) x 320 |
795 x 875 (+95) x 320 |
908 x 900 x 320 |
908 x 900 x 320 |
|
Net weight |
|
kg |
72 |
72 |
73 |
73 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
|
Refrigerant Loading |
R410A |
kg |
2,64 |
2,64 |
3,10 |
3,10 |
|
Elevation difference (in/out) 5) |
Max |
m |
15 |
15 |
15 |
15 |
|
Piping length |
Total |
m |
60 |
60 |
70 |
70 |
|
Piping length (one unit) |
Min / Max |
m |
3 / 25 |
3 / 25 |
3 / 25 |
3 / 25 |
|
Piping length without refrigerant
increase |
Max |
m |
30 |
30 |
40 |
40 |
|
|
|
|
|
|
|
Additional gas |
|
g/m |
20 |
20 |
20 |
20 |
|
Operating range 3) |
Cooling Min / Max |
ºC |
-10 / 46 |
-10 / 46 |
16 / 43 |
16 / 43 |
|
Heating Min / Max |
ºC |
-15 / 24 |
-15 / 24 |
-20 / 24 |
-20 / 24 |
|

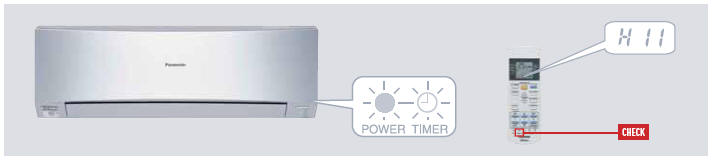

ETHEREA // SILVER OR WHITE // INVERTER+ |
|
2,0 KW |
2,5 KW |
3,2 KW |
4 KW |
5 KW |
6 KW |
|
Silver Indoor |
|
|
CS-XE7MKEW |
CS-XE9MKEW |
CS-XE12MKEW |
CS-XE15MKEW 1) |
CS-XE18MKEW 1) |
CS-XE21MKEW 1) |
|
White Indoor |
|
|
CS-E7MKEW |
CS-E9MKEW |
CS-E12MKEW |
CS-E15MKEW 1) |
CS-E18MKEW 1) |
CS-E21MKEW 1) |
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,00 / 1.720 |
2,50 / 2.150 |
3,20 / 2.750 |
4,00 / 3.440 |
5,00 / 4.300 |
6,00 / 5.160 |
|
Heating capacity |
Nominal |
kW / kCal/h |
3,20 / 2.750 |
3,60 / 3.010 |
4,50 / 3.870 |
5,60 / 4.820 |
6,80 / 5.850 |
8,50 / 7.310 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Sound pressure level 2) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
40 / 26 / 23 |
40 / 26 / 23 |
44 / 32 / 26 |
44 / 32 / 26 |
46 / 33 / 30 |
46 / 33 / 30 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
40 / 26 / 23 |
40 / 26 / 23 |
44 / 32 / 26 |
44 / 33 / 32 |
46 / 35 / 32 |
46 / 35 / 32 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
54 / 56 |
56 / 56 |
60 / 60 |
60 / 60 |
62 / 62 |
62 / 62 |
|
Dimensions |
H x W x D |
mm |
290 x 870 x 204 |
290 x 870 x 204 |
290 x 870 x 204 |
290 x 870 x 204 |
290 x 1.070 x 235 |
290 x 1.070 x 235 |
|
Net weight |
|
kg |
9 |
9 |
9 |
9 |
12 |
12 |
|
Air purifier filter |
|
|
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
Patrol + E-ion |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
|
|
|
|
|
|
|
|
Y // INVERTER+ |
2,5 KW |
4 KW |
5 KW |
|
Indoor hide away |
|
|
CS-E10KD3EA |
CS-E15JD3EA 1) |
CS-E18JD3EA 1) |
|
Wired remote control |
Include on the indoor unit |
|
CZ-RD52CP |
CZ-RD52CP |
CZ-RD52CP |
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,50 / 2.150 |
4,00 / 3.440 |
5,00 / 4.300 |
|
Heating capacity |
Nominal |
kW / kCal/h |
3,60 / 3.100 |
5,60 / 4.820 |
6,80 / 5.850 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
External static pressure |
High / Low |
Pa (mm) |
34 / 64 (3,47 / 6,53) |
34 / 69 (3,47 / 7,04) |
34 / 78 (3.47 / 7,95) |
|
Air Volume |
High / Medium / Low |
m³/h |
414 / 402 / 330 |
474 / 402 / 330 |
624 / 528 / 444 |
|
Sound pressure level 2) |
Cooling (Quiet / Low / High) |
dB(A) |
24 / 27 / 31 |
24 / 27 / 33 |
27 / 30 / 41 |
|
Heating (Quiet / Low / High) |
dB(A) |
24 / 27 / 35 |
24 / 27 / 33 |
29 / 32 / 41 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
49 / 51 |
49 / 51 |
57 / 57 |
|
Dimensions 4) |
H x W x D |
mm |
235 x 750 (+65) x 370 |
235 x 750 (+65) x 370 |
285 x 750 (+65) x 370 |
|
Net weight |
|
kg |
17 |
18 |
18 |
|
Piping connections |
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
|
|
|
|
|
SSETTE // INVERTER+ |
|
2,5 KW |
4 KW |
5 KW |
6 KW |
|
Indoor |
|
|
CS-E10KB4EA |
CS-E15HB4EA 1) |
CS-E18HB4EA 1) |
CS-E21JB4EA 1) |
|
Panel |
Sold separately |
|
CZ-BT20E |
CZ-BT20E |
CZ-BT20E |
CZ-BT20E |
|
Wireless control |
Include on the indoor unit |
|
|
|
|
|
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,50 / 2.150 |
4,00 / 3.440 |
5,00 / 4.300 |
6,00 / 5.160 |
|
Heating capacity |
Nominal |
kW / kCal/h |
3,60 / 3.100 |
5,60 / 4.820 |
6,80 / 5.850 |
8,50 / 7.310 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Sound pressure level 2) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
34 / 26 / 23 |
34 / 26 / 23 |
36 / 28 / 25 |
41 / 33 / 30 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
35 / 28 / 25 |
35 / 28 / 25 |
37 / 29 / 26 |
42 / 34 / 31 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
47 / 58 |
47 / 48 |
49 / 50 |
54 / 55 |
|
Dimensions |
Indoor (H x W x D) |
mm |
260 x 575 x 575 |
260 x 575 x 575 |
260 x 575 x 575 |
260 x 575 x 575 |
|
Dimensions |
Panel (H x W x D) |
mm |
51 x 700 x 700 |
51 x 700 x 700 |
51 x 700 x 700 |
51 x 700 x 700 |
|
Net weight |
Indoor (Panel) |
kg |
18 (2,5) |
18 (2,5) |
18 (2,5) |
18 (2,5) |
|
Air purifier filter |
Optional |
|
CZ-SA11P |
CZ-SA11P |
CZ-SA11P |
CZ-SA11P |
|
|
|
|
|
|
|
|
SSETTE // INVERTER+ |
|
2,0 KW |
2,8 KW |
3,2 KW |
4 KW |
|
Indoor |
|
|
CS-ME7KB1E |
CS-ME10EBE1E |
CS-ME12EBE1E |
CS-ME14EBE1E |
|
Panel |
Sold separately |
|
CZ-BT20P |
CZ-BT20P |
CZ-BT20P |
CZ-BT20P |
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,00 / 1.720 |
2,80 / 2.410 |
3,20 / 2.750 |
4,00 / 3.440 |
|
Heating capacity |
Nominal |
kW / kCal/h |
3,20 / 2.750 |
4,00 / 3.440 |
4,50 / 3.870 |
5,60 / 4.820 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Sound pressure level 2) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
40 / 32 / 29 |
40 / 32 / 29 |
41 / 32 / 29 |
43 / 32 / 29 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
42 / 32 / 29 |
42 / 32 / 29 |
43 / 32 / 29 |
44 / 34 / 31 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
53 / 55 |
53 / 55 |
54 / 56 |
56 / 57 |
|
Dimensions |
Indoor (H x W x D) |
mm |
185 x 770 x 360 |
185 x 770 x 360 |
185 x 770 x 360 |
185 x 770 x 360 |
|
Dimensions |
Panel (H x W x D) |
mm |
55 x 1.070 x 460 |
55 x 1.070 x 460 |
55 x 1.070 x 460 |
55 x 1.070 x 460 |
|
Net weight |
Indoor |
kg |
9,8 |
9,8 |
9,8 |
9,8 |
|
|
|
|
|
|
|
|
ONSOLE // INVERTER+ |
|
2,8 KW |
3,2 KW |
5 KW |
|
Indoor |
CS-E9GFEW |
CS-E12GFEW |
CS-E18GFEW 1) |
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,80 / 2.410 |
3,20 / 2.750 |
5,00 / 4.300 |
|
Heating capacity |
Nominal |
kW / kCal/h |
4,00 / 3.440 |
4,50 / 3.870 |
6,80 / 5.850 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Sound pressure level 2) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
38 / 27 / 23 |
39 / 28 / 24 |
44 / 36 / 32 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
38 / 27 / 23 |
39 / 27 / 23 |
46 / 36 / 32 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
54 / 54 |
55 / 55 |
60 / 62 |
|
Dimensions |
H x W x D |
mm |
600 x 700 x 210 |
600 x 700 x 210 |
600 x 700 x 210 |
|
Net weight |
kg |
14 |
14 |
14 |
|
|
|
|
|
|
|

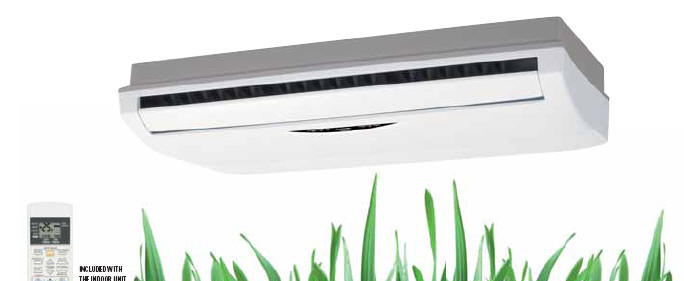

OOR/CEILING CONSOLE // INVERTER+ |
|
2,8 kW |
4 kW |
5 kW |
|
Indoor |
|
|
CS-ME10DTEG |
CS-E15DTEW 1) |
CS-E18DTEW 1) |
|
Cooling capacity |
Nominal |
kW / kCal/h |
2,80 / 2,408 |
4,15 / 3.570 |
5,00 / 4.300 |
|
Heating capacity |
Nominal |
kW / kCal/h |
4,00 / 3,440 |
5,17 / 4.450 |
6,80 / 5.850 |
|
Connection |
|
mm² |
4 x 1,5 |
4 x 1,5 |
4 x 1,5 |
|
Sound pressure level 2) |
Cooling (Hi / Lo / S-Lo) |
dB(A) |
39 / 31 / 28 |
45 / 37 / 34 |
46 / 39 / 36 |
|
Heating (Hi / Lo / S-Lo) |
dB(A) |
40 / 31 / 28 |
45 / 33 / 30 |
47 / 35 / 32 |
|
Sound power level |
Cooling / Heating (Hi) |
dB |
52 / 53 |
58 / 58 |
59 / 60 |
|
Dimensions |
H x W x D |
mm |
540 x 1.028 x 200 |
540 x 1.028 x 200 |
540 x 1.028 x 200 |
|
Net weight |
|
kg |
17 |
17 |
18 |
|
Air purifier filter |
Optional |
|
CZ-SA14P |
CZ-SA14P |
CZ-SA14P |
|
|
|
|
|
|
|
OUTDOOR UNIT //INVERTER+ |
|
|
4,0 to 5,6 kW |
4,0 to 6,4 kW |
4,5 to 9,0 kW |
4,5 to 11,0 kW |
4,5 to 13,6 kW |
|
Unit |
|
|
CU-2E15LBE |
CU-2E18LBE |
CU-3E18LBE |
CU-4E23LBE |
CU-4E27CBPG |
|
Cooling capacity |
Nominal (Min - Max) |
kW |
4,50 (1,50-5,20) |
5,20 (1,50-5,40) |
5,20 (1,80-7,30) |
6,80 (1.90-8,80) |
8,00 (3,00-9,20) |
|
Nominal (Min - Max) |
kCal/h |
3.870 (1.290-4.470) |
4.470 (1.290-4.640) |
4.470 (1.550-6.280) |
5.850 (1.630-7.570) |
6.880 (2.580-7.910) |
|
EER 3) |
Nominal |
Energy Saving |
3,66 A |
3,42 A |
4,33 A |
4,05 A |
4,04 A |
|
Power input Cooling |
Nominal (Min - Max) |
kW |
1,23 (0,25-1,52) |
1,52 (0,25-1,58) |
1,21 (0,36-2,18) |
1,68 (0,34-2,47) |
1,98 (0,53-2,87) |
|
Heating capacity |
Nominal (Min - Max) |
kW |
5,40 (1,10-7,00) |
5,60 (1,10-7,20) |
6,80 (1,60-8,30) |
8,60 (3,00-10,60) |
9,40 (4,20-10,60) |
|
Nominal (Min - Max) |
kCal/h |
4.640 (950-6.020) |
4.820 (950-6.190) |
5.850 (1.380-7.140) |
7.400 (2.580-9.120) |
8.080 (3.610/-9.120) |
|
COP 3) |
Nominal |
Energy Saving |
4,62 A |
4,63 A |
4,86 A |
4,65 A |
4,52 A |
|
Power input Heating |
Nominal (Min - Max) |
kW |
1,17 (0,21-1,67) |
1,21 (0,21-1,70) |
1,44 (0,32-2,11) |
1,85 (0,58-2,60) |
2,08 (0,70-3,06) |
|
Current |
Cooling / Heating Nominal |
A |
5,75 / 5,20 |
7,10 / 5,35 |
5,30 / 6.50 |
7,50 / 8,60 |
8,70 / 9,10 |
|
Power source |
|
V |
230 |
230 |
230 |
230 |
230 |
|
Sound pressure level 2) |
|
Cooling / Heating (Hi) |
dB(A) |
47 / 49 |
49 / 51 |
46 / 47 |
48 / 49 |
48 / 49 |
|
Sound power level |
|
Cooling / Heating (Hi) |
dB |
62 / 64 |
64 / 66 |
60 / 61 |
62 / 63 |
61 / 62 |
|
Dimensions 4) |
|
H x W x D |
mm |
540 x 780 (+70) x 289 |
540 x 780 (+70) x 289 |
795 x 875 (+95) x 320 |
795 x 875 (+95) x 320 |
908 x 900 x 320 |
|
Net weight |
|
|
kg |
38 |
38 |
71 |
72 |
73 |
|
Piping connections |
|
Liquid pipe |
inch (mm) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
1/4" (6,35) |
|
Gas pipe |
inch (mm) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
3/8" (9,52) |
|
Refrigerant Loading |
|
R410A |
kg |
1,45 |
1,45 |
2,64 |
2,64 |
3,10 |
|
Elevation difference (in/out) 5) |
Max |
m |
10 |
10 |
15 |
15 |
15 |
|
Piping length total |
Max |
m |
30 |
30 |
50 |
60 |
70 |
|
Piping length to one unit |
Min / Max |
m |
3-20 |
3-20 |
3-25 |
3-25 |
3-25 |
|
Piping length without refrigerant
increase |
Max |
m |
20 |
20 |
30 |
30 |
30 |
|
|
|
|
|
|
|
|
Additional gas |
|
g/m |
20 |
20 |
20 |
20 |
20 |
|
Operating range 2) |
Cooling Min / Max |
ºC |
16 / 43 |
16 / 43 |
-10 / 46 |
-10 / 46 |
16 / 43 |
|
ºC |
|
|
|
|
|
SELF DIAGNOSIS DESCRIPTION AND CHECK POINT
TABLE
In the event of breakdown, proceed as follows
to detect the error code.
1. Press “CHECK” button at the remote
control continuously for more than five seconds to turn on
diagnosis mode. “_ _” will be displayed at the remote
control LCD.
2. By pressing the TIMER “▲” button
once, the next error code (if any) will be displayed; press
“▼” button once, previous error code will be
displayed.
3. If error code displayed matches the error
code saved in unit memory (abnormality detected) Indoor PCB
will buzzer for 4 seconds to indicate the correct error code.
4. If “CHECK” button is pressed again or
without any operation for 30 seconds, the diagnosis mode will
turn off.
5. Turn ON the unit and reset the error code
by pressing the AC reset.
ERROR CODES TABLE
Warning: Electrical power must be disconnected
when terminal protective cover is not in place to protect
against electrocution.
|
Diagnosis |
Abnormality / |
Diagnosis Method |
Diagnosis Checkpoint |
|
Display |
Protection Control |
|
|
|
H11 |
Indoor/Outdoor |
This trouble display appears when
indoor/outdoor unit communication fails to be
established after 30 or more |
Measure the voltages of the
indoor/outdoor unit communication cables, and check
whether the voltage is being |
|
abnormal |
seconds. |
supplied properly to the outdoor unit or
whether it is being returned from the outdoor unit to
the indoor units. |
|
communication |
|
|
|
H12 |
Indoor unit capacity |
This trouble display appears when wrong
in the total connection capacity and wrong connection in
each capacity. |
Check the total capacity of the units
connected and check that the models are compatible for
connection. |
|
unmatched |
The trouble is determined within 2
minutes after the power is turned on. |
|
|
H14 |
Intake air temp. |
This trouble display appears when the
intake air temperature has exceeded above 46ºC
continuously for 2 minutes |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
sensor |
or dropped below -54ºC continuously for
5 seconds during operation. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
|
the connector is to blame. |
|
H15 |
Outdoor compressor |
— |
Check the sensor, and if open-circuit
(more than 500 k) or (short-circuit) (less than 6.5 k)
is not found, defective |
|
temperature sensor |
|
contact of the connector is to blame. |
|
abnormality |
|
|
|
H16 |
Outdoor Current |
CU-2E: When a value of under 1.5A has
been detected for the total current during operation
beyond the set |
1. Check the refrigerant cycle: Gas may
be leaking (the amount of refrigerant is extremely low). |
|
Transformer |
capacity, the compressor operates with
its operating frequency controlled to a maximum of 38Hz
for 3 minutes, |
2. Check the control PCB: Check for a
broken wire (open circuit) in the current transformer.
(If an open circuit is |
|
|
and if it continues to operate at a
total current of under 1.5A for another 3 minutes, its
operation stops. |
found, replace the control PCB) In the
case of a scroll compressor (DC motor), H16 is detected
only when the |
|
|
CU-3E/4E: When the total current has
dropped below the set current level continuously for 20
seconds during |
regular compressor is operating. |
|
|
operation beyond the set capacity,
operation is stopped. Three minutes later, operation is
started up again, and |
|
|
|
when the trouble occurs on 4 successive
occasions, the trouble display appears (the timer lamp
blinks). |
|
|
H19 |
Indoor fan motor |
· High-voltage PWM: When a state in
which the fan motor speed is not synchronized with the
control signal has been |
1. Check the nature of the fan lockup
trouble. |
|
mechanism lock |
detected on 7 successive occasions. |
2. Check for disconnections of the fan
motor connectors and for defects in contact, in the fan
motor and in the |
|
|
· Low-voltage PAM: When the fan lock
detection signal has been detected on 7 successive
occasions or it has been |
control PCB. |
|
|
detected continuously for 25 seconds or
when a state in which the fan motor speed is not
synchronized with the control |
|
|
|
signal has been detected on 7 successive
occasions: The trouble display appears (the timer lamp
blinks). |
|
|
H23 |
Indoor heat exchanger |
This trouble display appears when a
temperature of under approximately -40ºC or above
approximately 80ºC has |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
temp. sensor |
been detected by the heat exchanger
temperature sensor continuously for 5 seconds. (This
trouble is not detected |
been detected. Check the sensor, and if
(open-circuit) (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
during de-icing.) |
the connector or a defective control PCB
is to blame. |
|
H26 |
Ionizer Abnormality |
— |
1. Measure the voltages of the indoor
unit communication cables, and check whether the voltage
is being supplied |
|
|
|
properly. 2. Check the ionizer needle
and grounding plate is dust free. |
|
H27 |
Outdoor air temp. |
This trouble display appears when a
temperature of under approximately -40ºC or above
approximately 150ºC has |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
sensor |
been detected by the outside air
temperature sensor for 2 to 5 seconds. (This trouble is
not detected during |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit isnot
found, defective contact of |
|
|
de-icing.) |
the connector or a defective control PCB
is to blame. |
|
H28 |
Outdoor heat |
This trouble display appears when a
temperature of under approximately -60ºC or above
approximately 110ºC has |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
exchanger temp. |
been detected by the heat exchanger
temperature sensor for 2 to 5 seconds. (This trouble is
not detected during |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
sensor 1 |
de-icing.) |
the connector or a defective control PCB
is to blame. |
|
H30 |
Outdoor discharge |
CU-2E: This trouble display appears when
a temperature of under approximately -16ºC or above
approximately |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
pipe temp. sensor |
200ºC has been detected by the outlet
temperature sensor for 2 to 5 seconds. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
CU-3E/4E: Disconnected discharge sensor
· When the condensation temperature is higher than the
discharge |
the connector or a defective control PCB
is to blame. |
|
|
temperature + (plus) 6ºC, a sensor
disconnection is detected, operation stops, and the
trouble display appears |
|
|
|
(the timer lamp blinks). |
|
|
H32 |
Outdoor heat exchanger |
This trouble display appears when a
temperature of under approximately -60ºC or over
approximately 110ºC has |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
temp. sensor 2 |
been detected continuously for 2 to 5
seconds by the outlet temperature sensor of the heat
exchanger. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
(discharge pipe temp.) |
|
the connector or a defective control PCB
is to blame. |
|
H33 |
Indoor / Outdoor |
Indoor / Outdoor different model
junction, 100V charge into 200V outdoor unit. |
Check whether the voltage is being
supplied properly to the outdoor unit or whether it is
being returned from the |
|
wrong connection |
|
outdoor unit to the indoor units. |
|
H34 |
Outdoor heat sink |
This trouble display appears when a
temperature of under -43ºC or above 80ºC has been
detected by the outdoor |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
temp. sensor |
unit radiator fin sensor continuously
for 2 seconds. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
|
the connector or a defective control PCB
is to blame. |
|
H36 |
Abnormal gas pipe |
This trouble display appears when a
temperature of under approximately -45ºC or above
approximately 149ºC has |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
temp. sensor |
been detected by the outdoor unit gas
side pipe temperature sensor continuously for 2 to 5
seconds. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
|
the connector or a defective control PCB
is to blame. |
|
H37 |
Outdoor liquid pipe |
This trouble display appears when a
temperature of under -45ºC or above 149ºC has been
detected by the outdoor |
This trouble display appears when a
temperature which is impossibly high or low from a
normal standpoint has |
|
temp. sensor |
unit liquid side pipe temperature sensor
continuously for 2 seconds. |
been detected. Check the sensor, and if
open-circuiting (0L or ∞) or short-circuit is not
found, defective contact of |
|
|
|
the connector or a defective control PCB
is to blame. |
|
H38 |
Indoor / Outdoor |
— |
— |
|
mismatch (brand code) |
|
|
|
H39 |
Abnormal indoor |
This display appears in rooms other than
one in which indoor freezing trouble has occurred when
the pipes have |
— |
|
operating unit or |
been connected incorrectly, when an
outdoor expansion valve is defective or when an
expansion valve connector |
|
|
standBy units |
has become disconnected. |
|
|
H41 |
Abnormal wiring or |
CU-2E only This display appears when
this kind of trouble is detected 3 minutes after a
forced cooling operation |
— |
|
piping connection |
was conducted for one room during the
initial operation after the power was turned on. It
appears when: |
|
|
|
· The indoor unit pipe temperature in a
room without the capacity supply available at an outside
air temperature |
|
|
|
above 5ºC has dropped by more than
20ºC to 5ºC or lower 3 minutes after the compressor
started up. · The |
|
|
|
outdoor unit gas pipe temperature in a
room without the capacity supply available has dropped
by more than 5ºC |
|
|
|
to 5ºC or lower 3 minutes after the
compressor started up. |
|
|
H50 |
Ventilation failure |
This display appears when ventilation
motor is lock. |
1. Check the voltage drop at pin 1 &
2 of CNVENT to have 14Vdc. 2. Check the ventilation hose
condition from |
|
|
|
ventilation opening until tip cover. 3.
Check air fl ow from tip cover by hand. |
| Call for
details on Panasonic air conditioning quotations. |
|
Panasonic Air Conditioning Range
