BGE

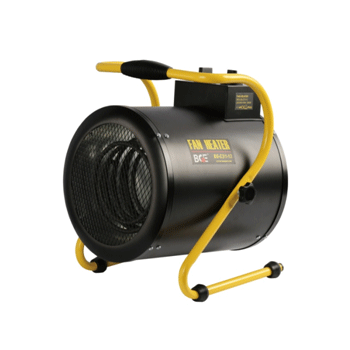

Kinlux BG-C9313 Industrial Electric Fan Heater With
Thermostat (9Kw/30000Btu) 415V~50Hz
The BGE
Kinlux BG-C Series industrial electric heaters
are designed for use in workshops, nurseries, showrooms,
storage rooms, construction sites and containers, ideal
for small to medium spaces. The BG-C9313 is perfect for
heating in large rooms where 3 phase is available. They also
provide comfortable heat and help with frost protection.
Both, economic and efficient with their integrated powerful
fans, the heat is concentrated to the ambient air. The BG-C
series of industrial electric heaters consume no oxygen and
are absolutely odorless, thus being a considerable advantage
when being used in poorly ventilated areas. IPX4
rating for use in damp areas. The heater can be
adjusted to a angle of 30°according to use within its frame
stand. The heat output can be adjusted in three stages,
fan only, half heat and full heat.
The
BG-C Series heat is dispensed efficiently to the ambient air
by a powerful fan. The temperature can be adjusted and is
controlled by the integrated thermostat. In summer, they can
be used for ventilating rooms when used on fan only
setting. All appliances are certificated to CE /GS
/LVD /EMC /RoHS and are thermally protected. The
heating elements are enclosed in a stainless jacket,
the unit body is manufactured from galvanized steel sheet
and the whole metal casing is powder coated against
rust. The handle and feet are insulated in plastic.
Technical
Specification:
Model
Number |
BG-9313 |
Outputs(watts) |
52/4500/9000w |
Brand |
BGE
Benlux |
|
9kW
/ 30000Btu |
Certification |
CE
/GS /LVD /EMC /RoHS |
Packaging |
415*370*470 |
Collection |
BG-C
Fan |
Weight
(Kg) |
11.9 |
Dimensions
Product (cm) |
350*405*460 |
Volts/Hertz |
380-415V~50HZ |
Amps
@ 451V |
18.1 |
Fuse(A) |
n/a |
Fan
Air Volume (M3/h) |
980 |
Standby
Power (W) |
0.0 |
Power
Cord Length (m) |
1.4 |
Cord
Type |
3PhNE |
View
the full range of BGE Finilux industrial electric fan heaters
below:
BGE
Kinlux BG-C3113 Industrial Electric Fan Heater With Thermostat
(3Kw/12000Btu) 240V~50Hz
BGE
Kinlux BG-C9313 Industrial Electric Fan Heater With Thermostat
(9Kw/30000Btu) 415V~50Hz
BGE
Kinlux BG-C1503 Industrial Electric Fan Heater With Thermostat
(15kW/50000Btu) 415V~50Hz
BGE
Kinlux BG-C3003 Industrial Electric Fan Heater With Thermostat
(30kW/100000Btu) 415V~50Hz
