BGE

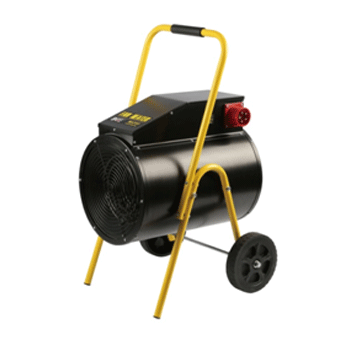

Kinlux BG-C3003 Industrial Electric Fan Heater With Thermostat
(30kW/100000Btu) 415V~50Hz
With
integrated room thermostat
The BGE
Kinlux BG-C Series industrial electric
heaters are designed for use in workshops, nurseries,
showrooms, storage rooms, construction sites and
containers, ideal for small to medium spaces. The
BG-C3003 is perfect for heating large rooms where 3
phase is available. Both, economic and efficient with their
integrated powerful fans, the heat is concentrated to the
ambient air. The BG-C series of industrial electric heaters
consume no oxygen and are absolutely odorless, thus being a
considerable advantage when being used in poorly ventilated
areas. IPX4 rating for use in damp areas. The heat
output can be adjusted in three stages, fan only,
1/2 power and full heat.
The
BG-C Series heat is dispensed efficiently to the ambient air
by a powerful fan. The temperature can be adjusted and is
controlled by the integrated thermostat. In summer, they can
be used for ventilating rooms when used on fan only
setting. All appliances are certificated to CE /GS
/LVD /EMC /RoHS. The heating elements are enclosed in
a stainless jacket and are thermally protected,
the unit body is manufactured from galvanized steel sheet
and the whole metal casing is powder coated against
rust. The handle and feet are insulated in plastic.
Technical
Specification:
| Model
Number |
BG-C3003 |
| Outputs(watts) |
70/15000/30000 |
| Brand |
BGE
Benlux |
|
|
30kW
/ 100000Btu |
| EAN |
n/a |
| PNC |
n/a |
| Collection |
BG-C
Fan |
| Weight
(Kg) |
22.0 |
| Dimentions
Product (cm) |
495*520*860 |
| Volts/Hertz |
380-415V~50HZ |
| Amps
@ 415V |
72 |
| Fan
Air Volume (M3/h) |
1911 |
| Standby
Power (W) |
n/a |
| Power
Cord Length (m) |
1.6 |
| Cord
Type |
3PhNE |
